Highway & Building Facade Advertising Solutions | 1000×1000mm Lightweight Aluminum Cabinet | IP65 Front-Service LED Screen with 30% Energy Saving Technology
Maximize Your Advertising ROI with Adhaiwell’s high-performance, industrial-grade aluminum profile alloy outdoor LED display, engineered for high-rise facades, coastal landmarks, highway 3D billboards, stadiums, shopping malls, and events across North America, Europe, the Middle East, and Asia. Built with IP65 weatherproof protection, 30% energy efficiency, 6000nits daylight visibility, and hassle-free front/rear maintenance, this series delivers reliable, long-lasting outdoor performance where low power consumption and thermal management are mission-critical.
Aluminum Profile P3.91 | P 4.81 LED Display：Key Features & Technical Highlights
- Built with 6063‑T5 industrial‑grade aluminum alloy for 20‑year structural integrity, performing reliably in harsh outdoor conditions across North America, Europe, Middle East, and Asia.
- 35% lighter cabinet (22.5kg) cuts shipping, crane, labor, and structural load costs for large highway, stadium and high‑rise installations.
- 30% energy saving (100–200W/㎡) drastically lowers power expenses and delivers fast ROI for long‑term outdoor advertising networks.
- 6000nits brightness + 10,000:1 contrast with matte mask ensures crystal‑clear, sunlight‑readable content for 3D billboards and commercial facades.
- 3840Hz high refresh + 16‑bit grayscale eliminates flicker and scan lines, ideal for live events, stadiums and social media/broadcast filming.
- IP65 front & rear waterproof/dustproof validated under real pressure testing, operating safely from ‑20°C to +60°C globally.
- Full front & rear hot‑swap service allows 90‑second module replacement with no tools or power shutdown, minimizing downtime.
- Passive aluminum heatsink cooling extends LED lifespan by running 15°C cooler, no noisy fans, stable color and long‑term performance.
- Tool‑free fast‑lock system enables seamless splicing, quick assembly and perfect flatness for large LED walls.
Engineered for Industrial-Scale Outdoor Performance

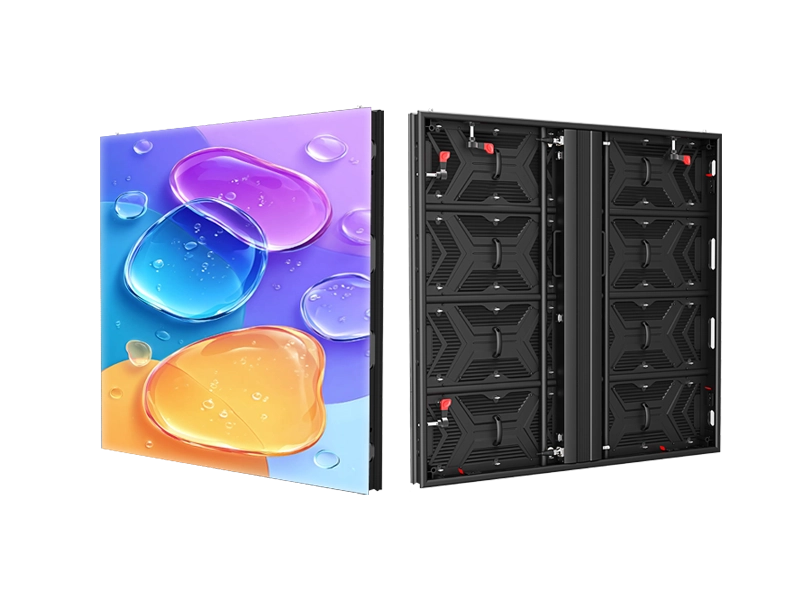

High-Performance Industrial-Grade Energy-Saving Aluminum Outdoor LED Display

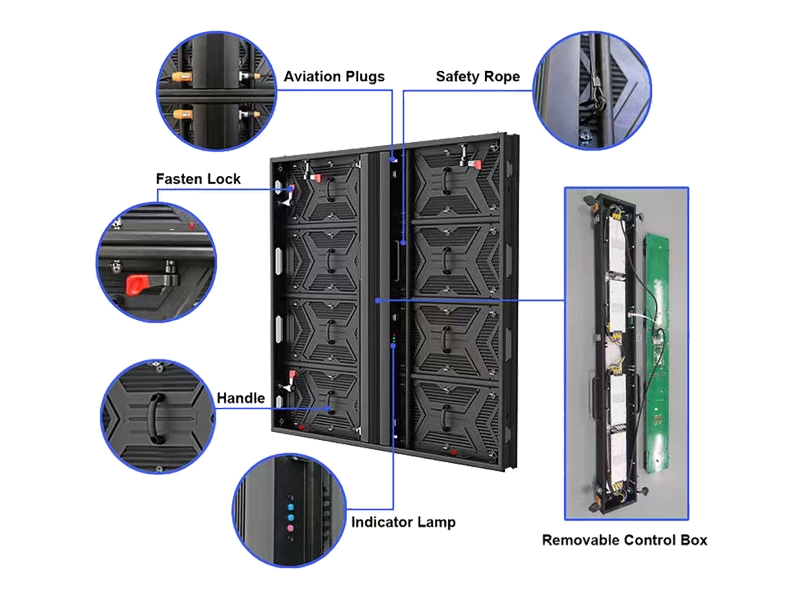

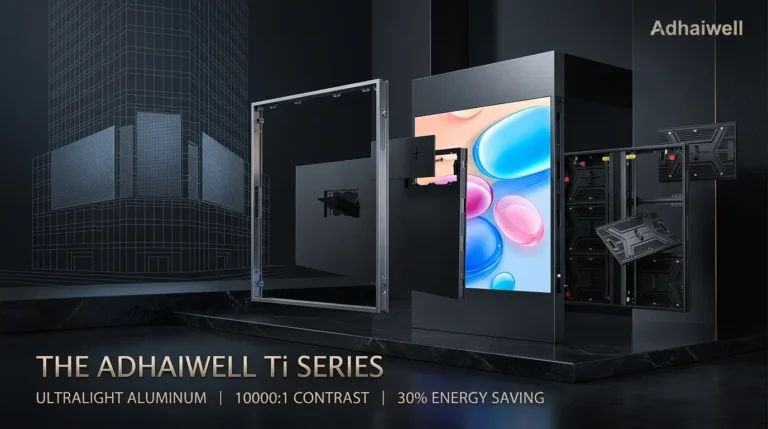

Explore the industrial-grade craftsmanship of Adhaiwell’s Ti Series. Features high-precision alignment pins, integrated HUB boards, and stainless steel fasteners.
Engineered for High-Impact DOOH Advertising in Extreme Environments

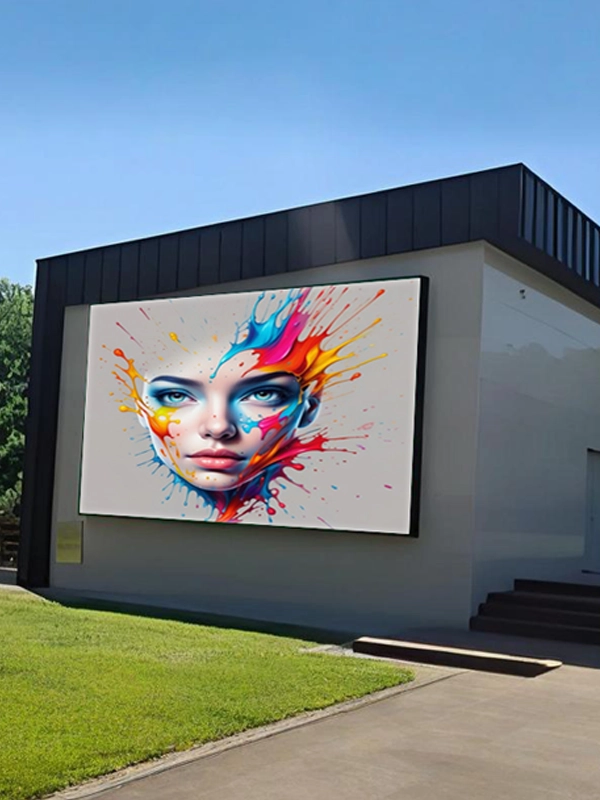

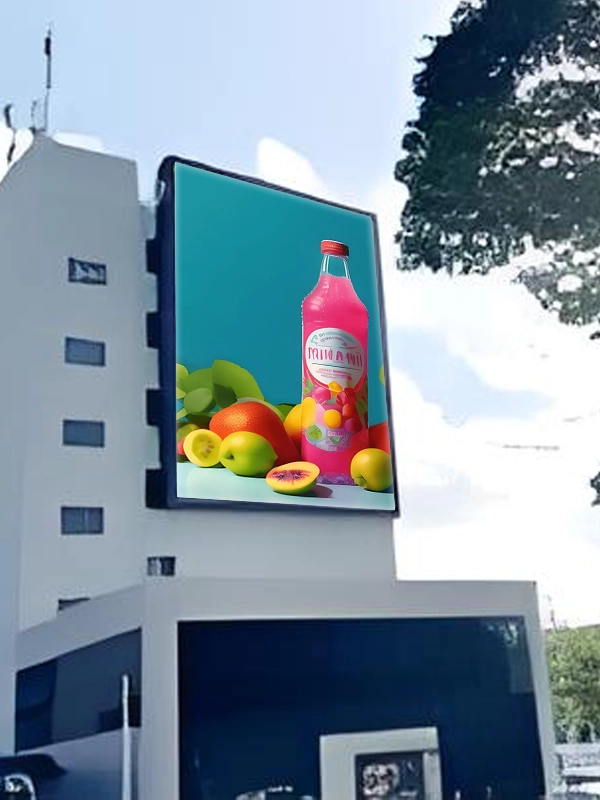

High-Rise Building Facades, Coastal Landmarks, and Highway Digital Billboards, Adhaiwell’s Industrial-Grade Aluminum LED Display solves the industry’s biggest challenges: heat, weight, and power consumption. Whether you are in the humid tropics of Mozambique or the sunny city centers of Europe, the Ti Series delivers consistent, high-brightness performance with unmatched stability.

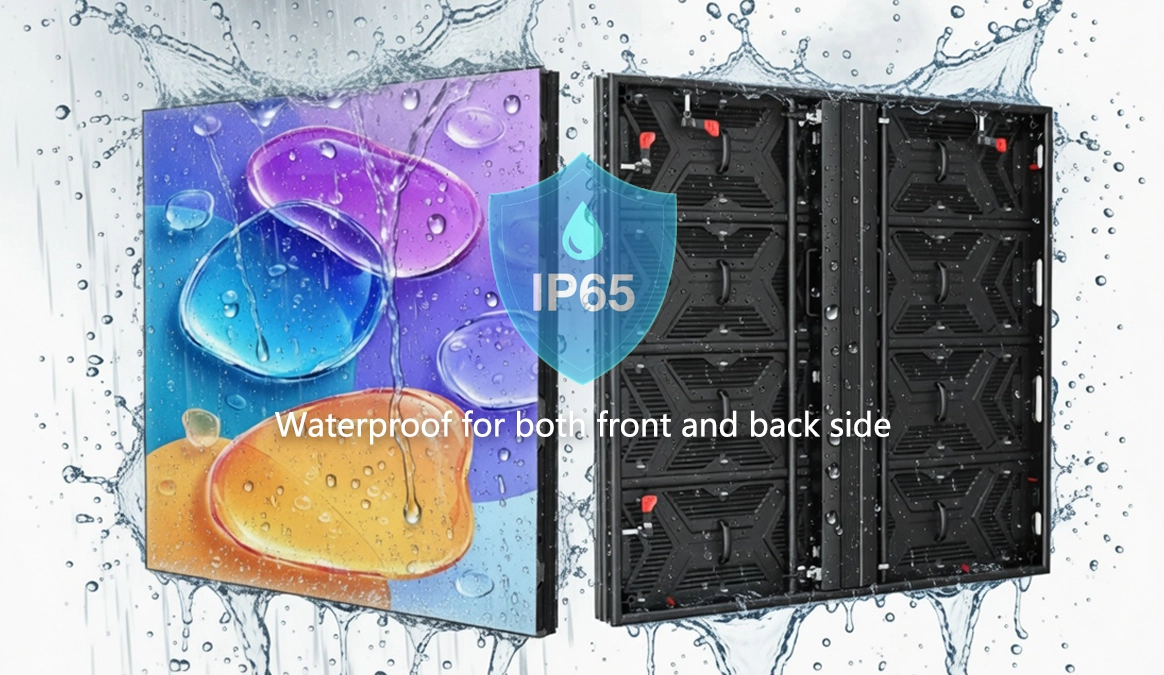

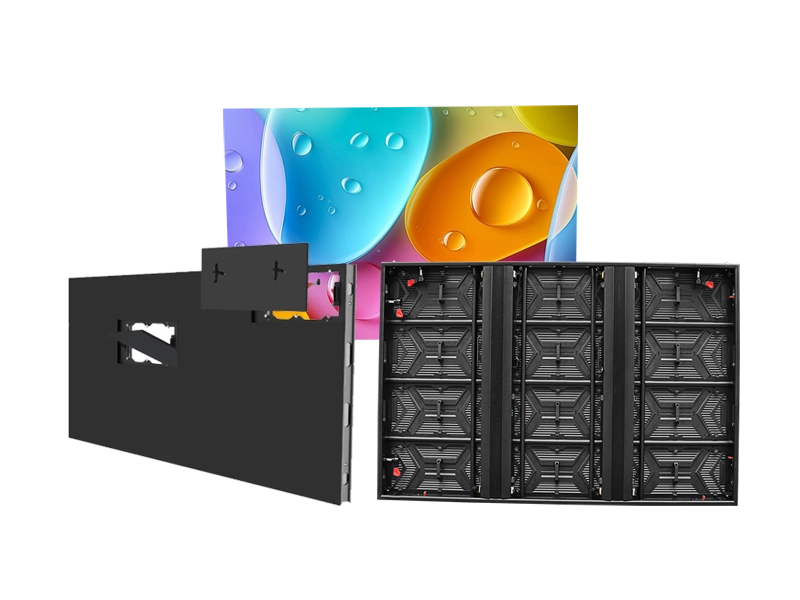

Industrial-Grade High-Waterproof LED Solution
Adhaiwell’s industrial-grade aluminum profile alloy outdoor LED display cabinet delivers exceptional durability, lightweight design, and superior energy efficiency. Engineered with high-precision aluminum alloy construction and advanced sealing technology, it provides reliable IP65 waterproof protection for both front and rear sides — perfect for harsh outdoor environments

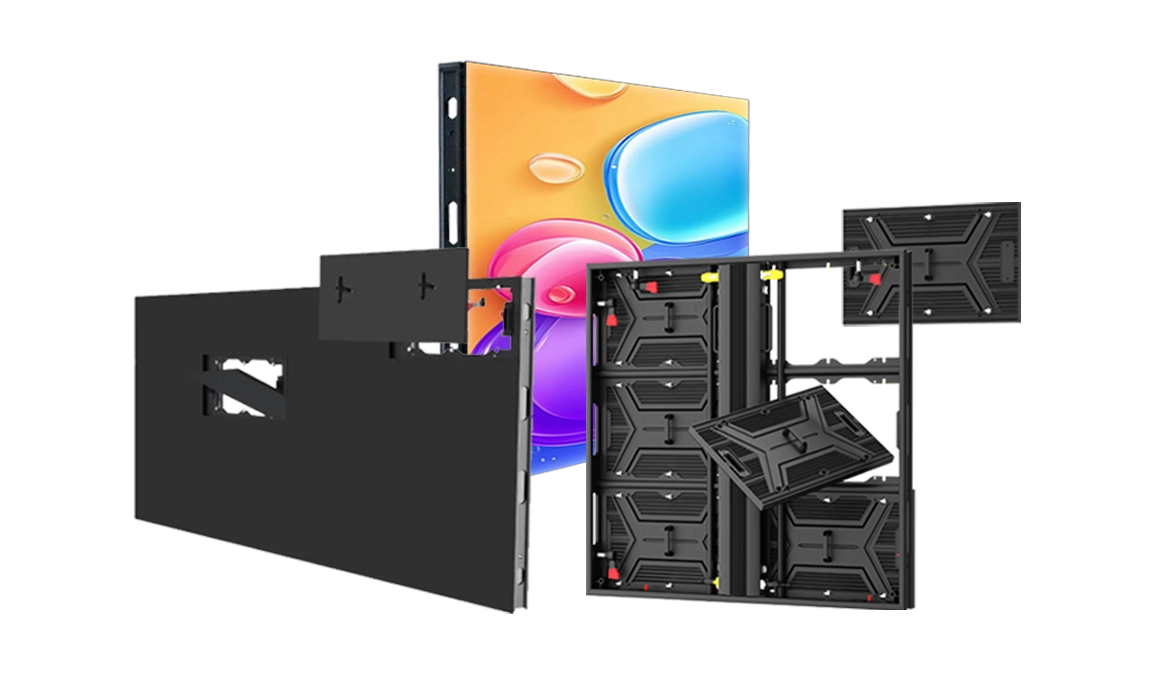

Dual-Access Engineering: Maintenance Without Boundaries
Adhaiwell’s High-Performance Industrial-Grade Ti Series is designed for maximum versatility. By integrating a Front & Rear Access mechanism into our 83mm slim aluminum profile alloy frame, we provide the ultimate solution for space-constrained advertising sites. Whether your screen is embedded directly into a retail wall or mounted flush against a skyscraper facade, the Ti Series ensures that maintenance never requires a massive structural tear-down, significantly reducing long-term service labor and downtime.
Aluminum Profile Alloy Outdoor LED Display Specifications（1000 x 1000mm）
|
Item |
P3.91 |
P4.81 |
P6.25 |
P7.81 |
P10.42 |
|---|---|---|---|---|---|
|
Pixel Pitch |
3.91mm |
4.81mm |
6.25mm |
7.81mm |
10.42mm |
|
Pixel Configuration |
SMD 1921 |
SMD 1921 |
SMD 2727 |
SMD 2727 |
SMD 2727 |
|
Cabinet Size (W x H) |
1000mm x 1000mm |
1000mm x 1000mm |
1000mm x 1000mm |
1000mm x 1000mm |
1000mm x 1000mm |
|
Density (Pixels/㎡) |
65,536 |
43,264 |
25,600 |
16,384 |
9,216 |
|
Module Size (WxH) |
500mm x 250mm |
500mm x 250mm |
500mm x 250mm |
500mm x 250mm |
500mm x 250mm |
|
Module Resolution |
128 dots x 64 dots |
104dots x 52 dots |
80dots x 40dots |
64dots x 32dots |
48dots x 24dots |
|
Driving Mode |
1/16scan |
1/13scan |
1/8scan |
1/4scan |
1/2scan |
|
Cabinet Resolution(dots) |
256dots x 256 dots |
208dots x 208dots |
160dots x 160dots |
128dots x 128dots |
96dots x 96dots |
|
Cabinet Weight Cabinet Material |
23Kg Aluminum Profile |
23Kg Aluminum Profile |
23Kg Aluminum Profile |
23Kg Aluminum Profile |
23Kg Aluminum Profile |
|
Brightness (nit) |
5,500~8,000 |
6,500~8,000 |
6,500~8,000 |
6,500~10,000 |
6,000~10,000 |
|
Refresh Rate |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
3840Hz |
|
Gray Grade (Bits) |
13 bits~24bits |
13 bits~24bits |
13 bits~24bits |
13 bits~24bits |
13 bits~24bits |
|
Viewing Angle |
H:160°/V160° |
H:160°/V160° |
H:160°/V160° |
H:160°/V160° |
H:160°/V160° |
|
Contrast Ratio |
10000 : 1 |
10000 : 1 |
10000 : 1 |
10000 : 1 |
10000 : 1 |
|
Minimum Viewing Distance |
≥3.9m |
≥4.8m |
≥6.25m |
≥7.81m |
≥10m |
|
IP Grade |
IP65 |
IP65 |
IP65 |
IP65 |
IP65 |
|
Maximum Power Consumption |
650W/m² |
650W/m² |
650W/m² |
650W/m² |
650W/m² |
|
Average Power Consumption |
200W/m² |
200W/m² |
200W/m² |
200W/m² |
200W/m² |
|
Working Temperature (ºC) |
-20 ºC~ +65 ºC |
-20 ºC~ +65 ºC |
-20 ºC~ +65 ºC |
-20 ºC~ +65 ºC |
-20 ºC~ +65 ºC |
|
Operating Humidity |
10%~90% |
10%~90% |
10%~90% |
10%~90% |
10%~90% |
|
Inout Voltage |
AC 110 V ~ AC 240 V |
AC 110 V ~ AC 240 V |
AC 110 V ~ AC 240 V |
AC 110 V ~ AC 240 V |
AC 110 V ~ AC 240 V |
|
Operating System |
Win7,Win8, Win10, Win 11etc |
Win7,Win8, Win10, Win 11etc |
Win7,Win8, Win10, Win 11etc |
Win7,Win8, Win10, Win 11etc |
Win7,Win8, Win10, Win 11etc |
|
Controlling system |
Novastar Wifi/LAN/4G/Cloud Platform/ App |
Novastar Wifi/LAN/4G/Cloud Platform/ App |
Novastar Wifi/LAN/4G/Cloud Platform/ App |
Novastar Wifi/LAN/4G/Cloud Platform/ App |
Novastar Wifi/LAN/4G/Cloud Platform/ App |
Customizable Aluminum Profile Alloy Outdoor LED Display Cabinets: Multiple Sizes for Every LED Screen Project
From compact 1000x500mm to large-format 1500x1000mm, Adhaiwell Ti Series delivers fully customizable industrial-grade aluminum cabinets for stadiums, billboards, facades and rental events worldwide. Our lightweight, rigid structure cuts shipping, crane and labor costs, with seamless integration for high-rise facades, coastal landmarks and highway 3D billboards. OEM/ODM sizing, pixel pitches and modular configurations are available to match your exact project requirements.

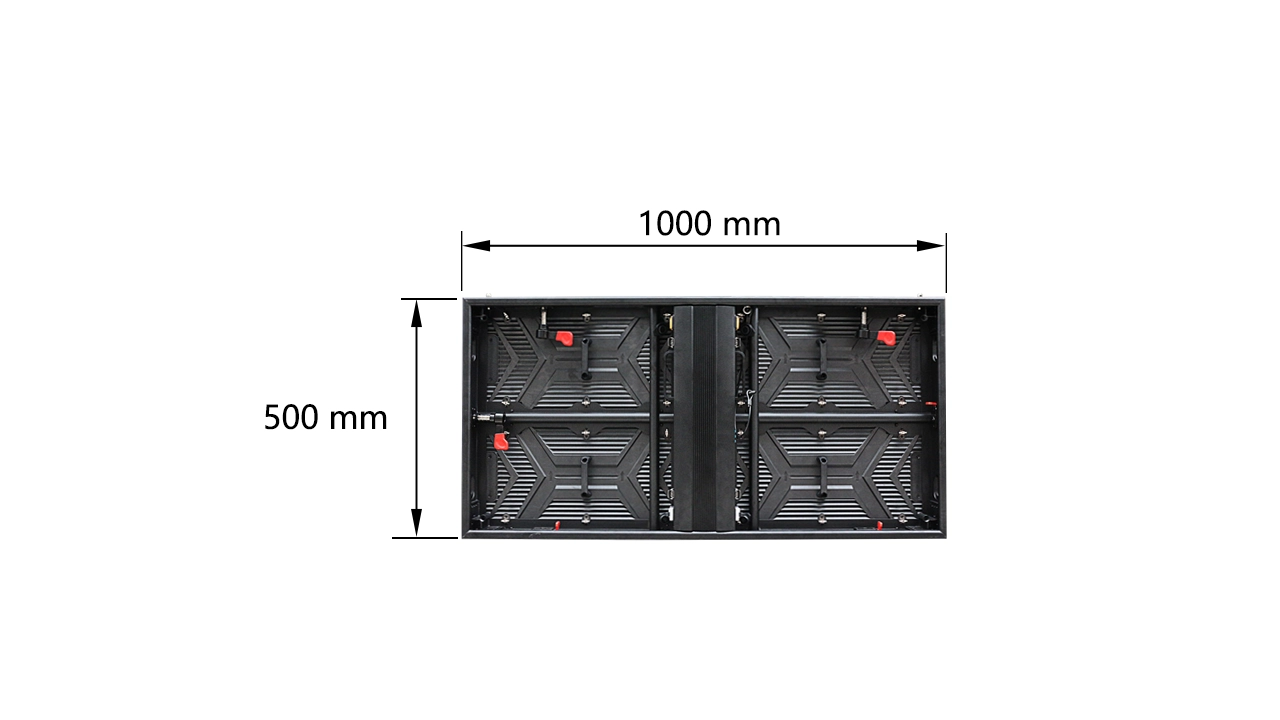

1000 mm x 500 mm Aluminum Profile Alloy Outdoor LED Cabinet

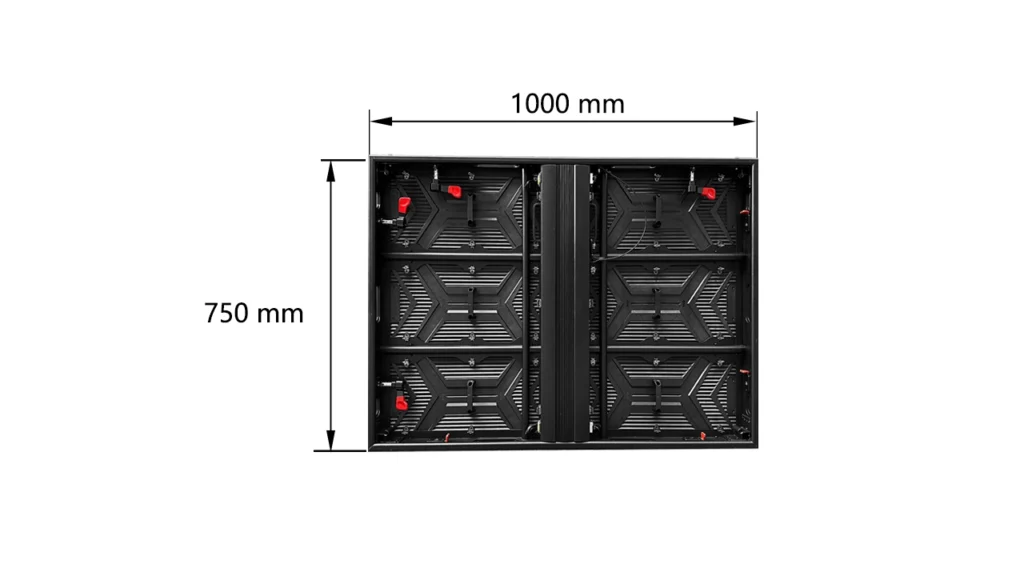

1000 mm x 750 mm Aluminum Profile Alloy Outdoor LED Cabinet

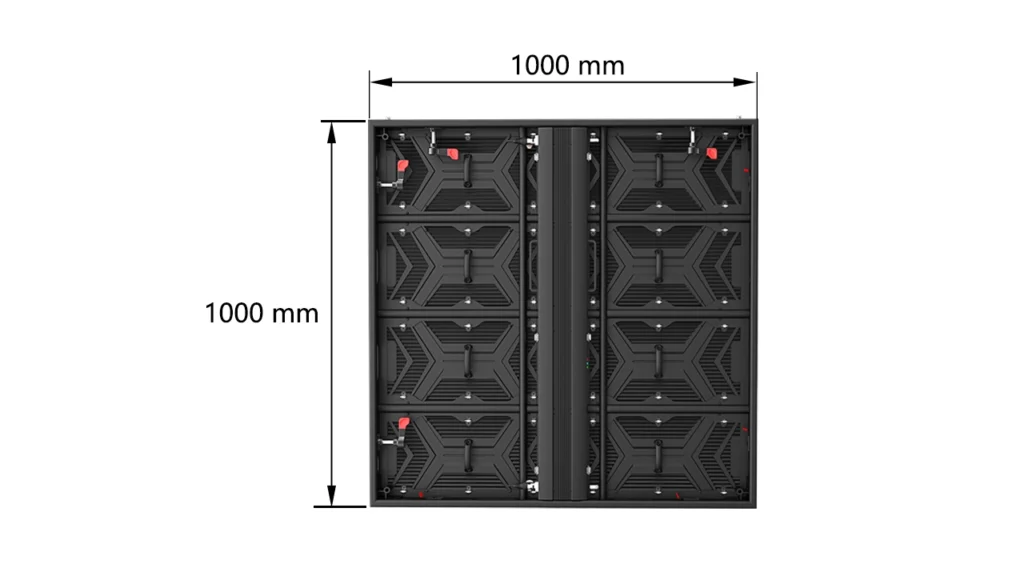

1000 mm x 1000 mm Aluminum Profile Alloy Outdoor LED Cabinet

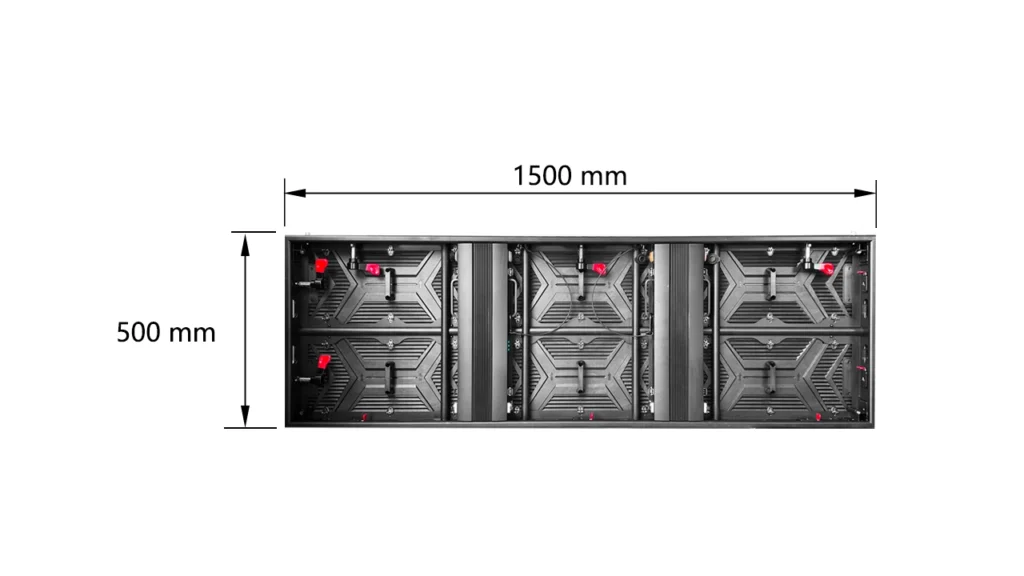

1500 mm x 500 mm Aluminum Profile Alloy Outdoor LED Cabinet

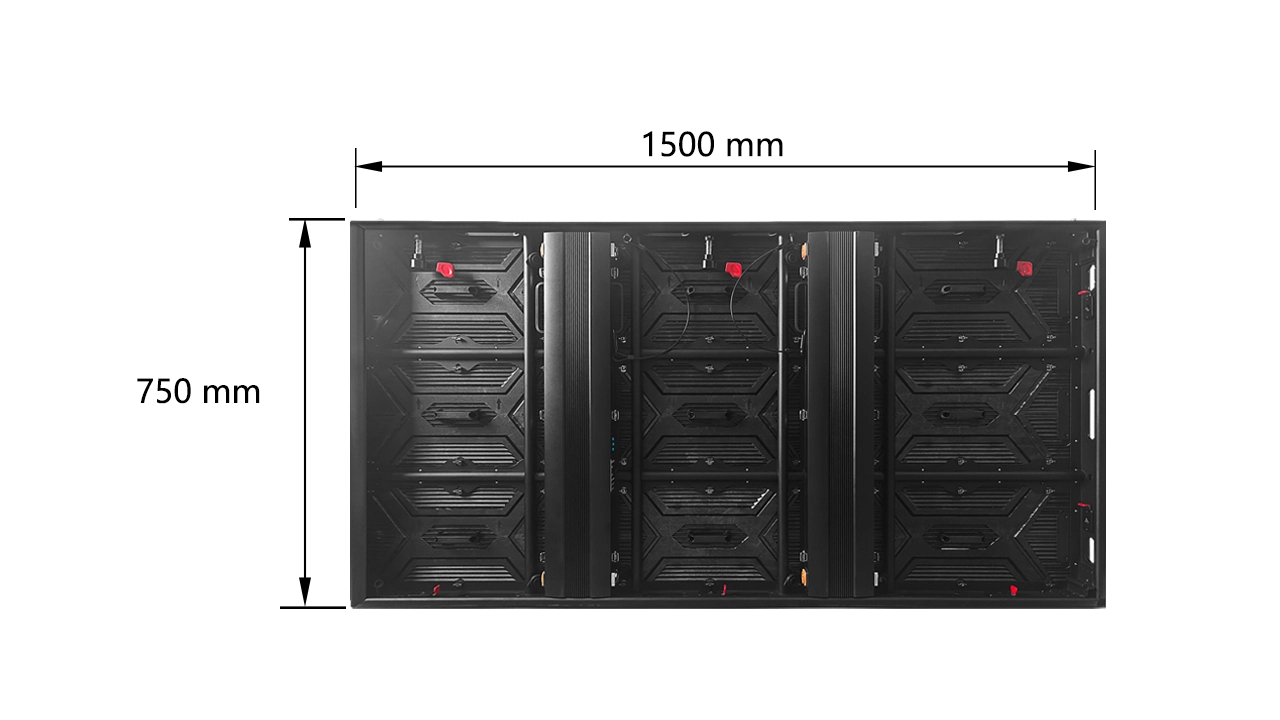

1500 mm x 750 mm Aluminum Profile Alloy Outdoor LED Cabinet

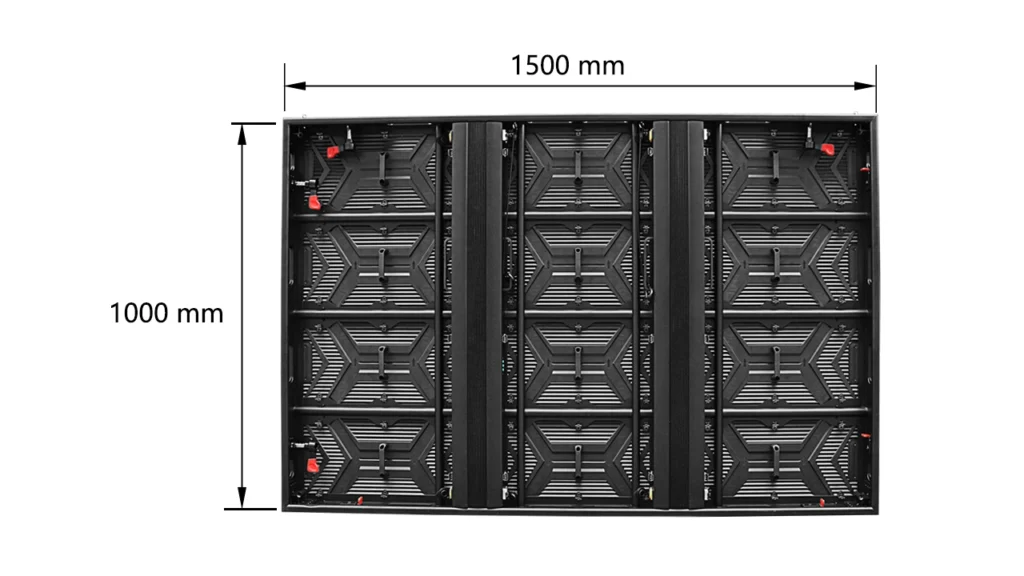

1500 mm x 1000 mm Aluminum Profile Alloy Outdoor LED Cabinet
Global Success Stories: High-Performance LED Display Applications
Engineering digital landmarks with industrial-grade aluminum technology across diverse architectural environments.

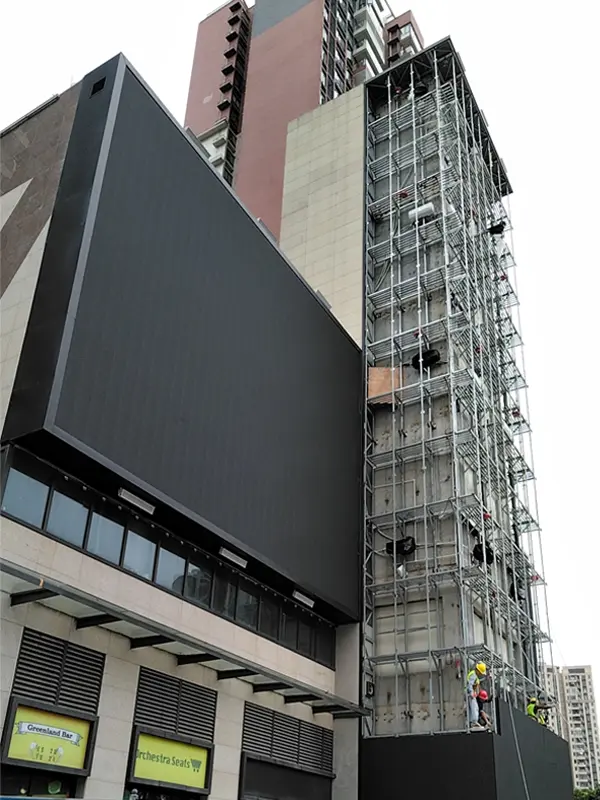

High-Rise Building Facades
Our lightweight 22.5kg aluminum cabinets are engineered for complex high-altitude installations. Designed to minimize structural load while ensuring extreme wind resistance for urban skyscrapers.
Commercial Media Landmarks
Create high-impact digital billboards in premium retail hubs. Features 10,000:1 ultra-high contrast for vivid 3D content that captures audience attention even in direct mid-day sun.

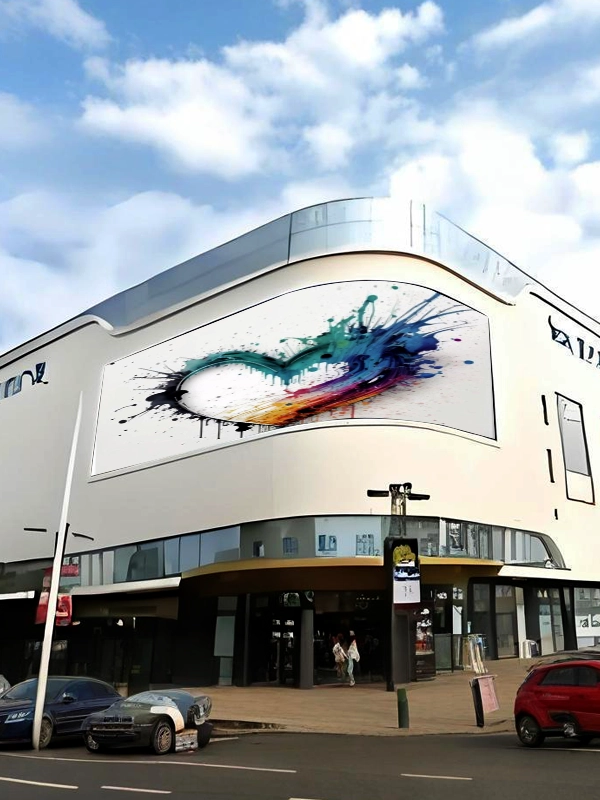

Curved & Wrapped Facades
Our flexible aluminum profile alloy allows for high-precision splicing on curved building surfaces. Perfect for shopping malls requiring seamless visual continuity across complex corners.
Wall-Mounted Digital Billboards
Optimized for sites with zero rear space. Our Ti Series supports full Front & Rear Access, making maintenance effortless for wall-mounted installations in tight urban corridors.

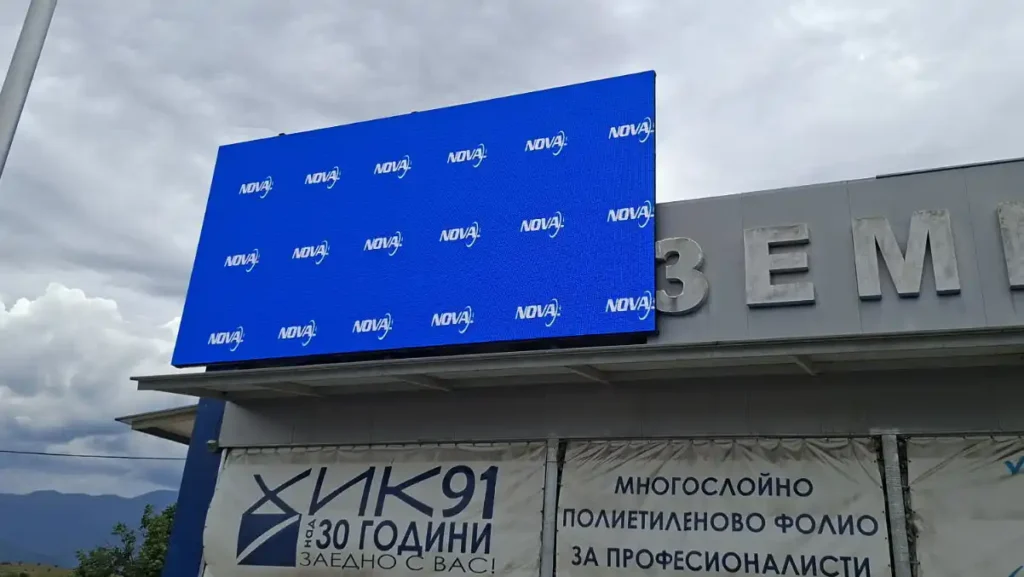

Industrial Mastery in Motion: The Bulgaria P4.81 Aluminum Profile LED Display Project Case Study
Witness the fully transparent factory journey of our 6m×3m high-performance outdoor display, from rigorous quality testing to final shipment. Want a stable, long-life LED display for your LED Display project? Get in touch with Adhaiwell.
Quality is Our Habit, Not Our Price Point
At Adhaiwell, we believe long-term stability is the only path to a true win-win partnership. A lower price often masks inferior components, leading to hidden maintenance costs and downtime. That’s why we strictly integrate Nationstar LEDs, NovaStar TB-Series Controllers, and CE-Certified Power Units as our baseline standard.
Quality is Not an Act, It is a Habit.
- 72H Stress-Test Protocol: Continuous rigorous aging to guarantee zero-defect delivery.
- Industrial Aluminum Heatsink: Advanced profile alloy for 4x faster cooling than standard steel.
- Tier-1 Component Ecosystem: Genuine Tier-1 hardware integration—built for elite performance.
FAQ: Industrial-Grade Aluminum LED Solutions
Stability is Our Habit. We combine Elite Hardware (NovaStar, Nationstar) with transparent industrial standards to serve global clients who refuse to compromise on quality.
Q1: Why is Adhaiwell’s Industrial-Grade Aluminum LED priced differently than standard iron or steel LED screens?
A: We don’t compete on price; we lead on long-term ROI. The Aluminum Profile Alloy LED Series is a High-Performance Industrial-Grade solution. Unlike budget screens, we use Aluminum Profile Alloy, which offers 4x better heat dissipation and zero rust. When you factor in the 30% energy savings and the virtual elimination of high maintenance costs over 10 years, Adhaiwell becomes the most cost-effective investment for professional DOOH networks.
Q2: What specific Tier-1 components do you use to ensure long-term stability?
A: Stability is our habit. We strictly integrate a “Golden Triangle” of components: Nationstar LEDs (for 10,000:1 contrast), NovaStar TB-Series Controllers (for smart cloud management), and CE-Certified Industrial Power Units. We refuse to use budget “no-name” components that mask hidden failures. Every part is chosen for its ability to perform in extreme 24/7 outdoor environments.
Q3: What is your standard lead time for a custom project like a 6m x 3m display?
A: Quality takes time, but efficiency is our strength. Our standard production cycle is typically 25-35 days. This includes precision CNC aluminum fabrication, module assembly, and our mandatory 72-hour rigorous aging protocol. We provide a transparent production schedule and weekly photo/video updates (like our recent Bulgaria project) so you remain in full control of your project timeline.
Q4: How do you handle Quality Control (QC) for international shipments?
A: Every Adhaiwell screen undergoes a “Total Transparency” inspection. This includes an IP65 Waterproof Test, a Mechanical Impact Check, and a full RGBW Color Calibration. We provide customers with a complete pre-shipment video report showing every cabinet in operation. For Europe and the US, we ensure full CE etc compliance on all electrical components to meet local safety regulations.
Q5: Do you provide after-sales support and spare parts for long-term projects?
A: Yes. We build for stability and support for the long term. Every project comes with a 2-Year Essential Spare Parts Kit (LED modules, power supplies, cables) to ensure zero downtime. Furthermore, our engineers provide 24/7 remote technical support and comprehensive installation guides. We are not just a supplier; we are your long-term engineering partner.
Q6: Can the dimensions be customized for specific architectural facades?
A: Absolutely. Our Aluminum Profile system is highly flexible. While we offer standard sizes like 1000x1000mm and 1500x1000mm, we specialize in Customizable Dimensions and OEM Services. We can tailor the cabinet size, pixel pitch, and mounting structure to integrate seamlessly into high-rise facades, curved corners, or unique digital landmarks.
