Energy-Saving Aluminum Profile Perimeter LED Screen | Lightweight High-Performance Outdoor Display for Stadiums & Sports Arenas
In modern professional sports, outdoor LED perimeter screens are more than digital billboards—they’re high-impact revenue generators for world-class stadiums.
Adhaiwell’s energy-saving aluminum profile series is purpose-built for FIFA-standard football fields, international sports venues, and multi-purpose arenas. Engineered with a rugged Aluminum Profile LED Cabinet, player-safe soft mask, and 6500nits high brightness, this display delivers crisp live action and advertising in any light. With IP65 weather protection and flexible angle installation, we ensure long-term reliability and athlete safety for the most demanding elite sports environments.
P6.25/P8.33/P10 Aluminum Profile LED Stadium Perimeter Display： Key Features & Technical Highlights

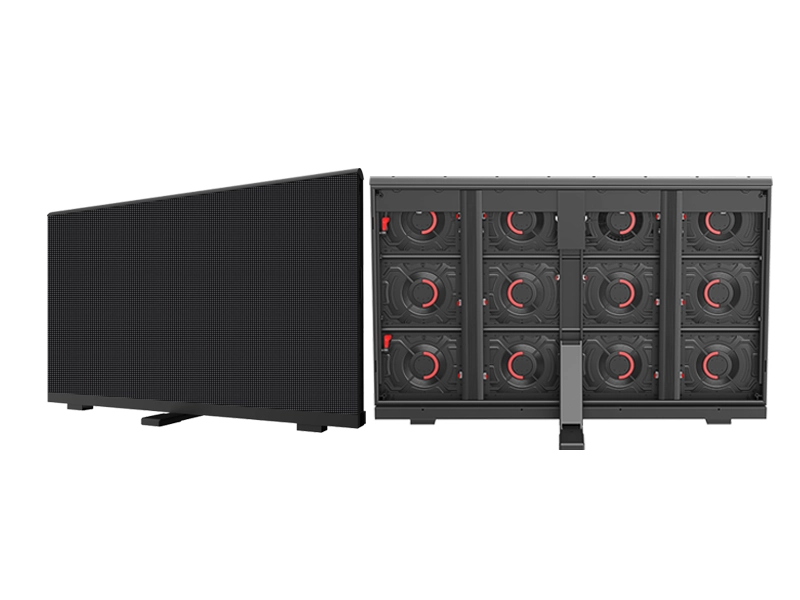

- Heavy-Duty Aluminum Profile Cabinet: Built with a high-strength aluminum profile structure for excellent rigidity, stable shape, efficient heat dissipation, and long service life, ideal for long-term outdoor stadium installation.
- IP65 Weatherproof & UV Protection： Fully sealed design delivers reliable protection against rain, dust, extreme temperatures and UV radiation, maintaining 24/7 operation in all weather conditions.
- Ultra-High Brightness & High Refresh Rate: 6500 nits daylight-visible brightness and 3840Hz refresh rate deliver crisp, flicker-free live video, replays, and advertising content for maximum audience engagement.
- Flexible Installation & Seamless Viewing：90°–180° adjustable cabinet angle enables seamless corner fitting and curved layout, with 160° wide viewing angle for uniform image from all spectator zones.

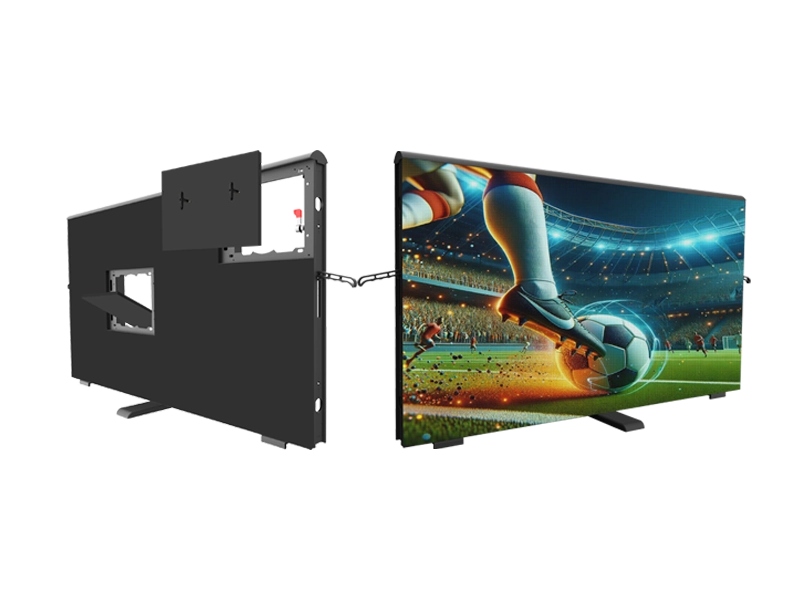

- Player Safety & Site Security： Soft mask and anti-kick silicone padding reduce impact injury risk; integrated emergency door provides safe evacuation access and fire barrier function.

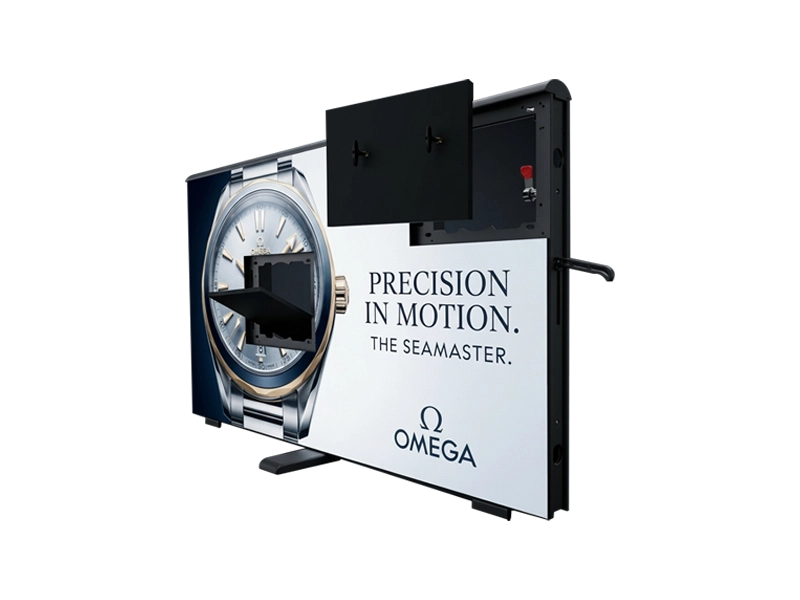

- Easy Front Service & Stable Operation： Front-access maintenance design minimizes downtime; hidden cabling, air switch protection and dual signal backup (optional) ensure safe, reliable power and signal transmission.
- Energy Efficient & Low Total Cost of Ownership：Optimized power design lowers average power consumption to 120–200W/㎡, cutting energy costs while extending service life and reducing maintenance expenses.
- NovaStar Control & Fiber-Optic Transmission： Powered by the NovaStar stadium-grade control system, supporting lossless 10G fiber-optic transmission up to 10km. Featuring fiber-to-Ethernet extension and full-link redundancy, this solution guarantees zero-latency, uninterrupted performance for elite live sports, even across large-scale venues.
Energy-Saving Aluminum Profile Perimeter LED Screen: The Ultimate High-Performance Sports Display
Engineered for professional football pitches and international sports arenas, Adhaiwell’s Aluminum Profile LED Perimeter Screen series redefines stadium perimeter advertising. Featuring 6500nits high brightness for full sunlight visibility, a player-safe soft impact mask, and IP65 weatherproof rating, this industrial-grade display delivers uncompromised reliability and high-impact brand exposure for elite sports venues. Optimized for sustainable operations, it cuts energy consumption by up to 50% while supporting NovaStar’s professional fiber-optic control system for seamless live sports transmission.
Elite Stadium Infrastructure | FIFA-Standard
Seamless Integration & Intelligent Control for Global Venues
Ultra-Wide 160° Viewing Angle
3840Hz Ultra-High Refresh Rate
6500nits Daylight-Visible High Brightness
Seamless Cabinet Splicing & Zero-Frame Design
NovaStar Remote Intelligent Control System
Adhaiwell’s aluminum profile LED stadium perimeter screens are engineered for seamless integration into global professional football venues and international sports arenas. Our zero-frame cabinet design delivers flawless seamless splicing for ultra-large, immersive display walls, while a 160° ultra-wide viewing angle ensures consistent, high-brightness visuals across every spectator zone. Powered by NovaStar’s professional stadium-grade control system, the solution supports long-distance remote operation, 10G fiber-optic signal transmission, and centralized intelligent management—enabling reliable, zero-interruption live sports broadcasting, sponsor advertising, and venue branding for venues of any scale worldwide.
Precision Clarity for Elite Sports Environments
Make every pixel count. Our energy-saving aluminum series delivers vivid, sun-readable content that stands out in the most demanding stadiums. Designed to eliminate flicker and moiré for TV coverage, Adhaiwell ensures your brand shines with absolute precision, delivering a premium visual experience that maximizes sponsor ROI and fan engagement.

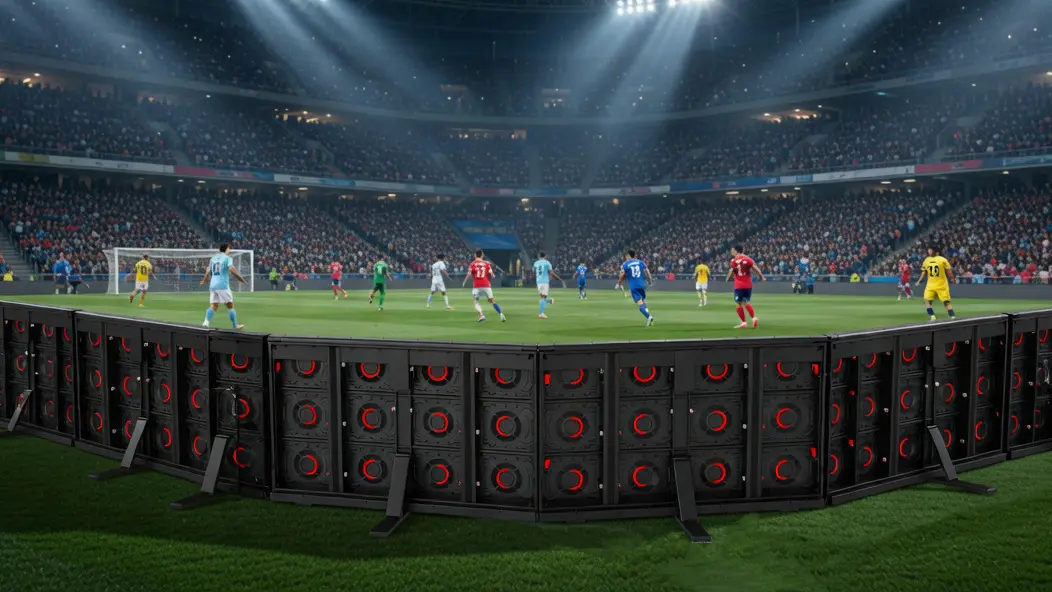

Flexible Installation
Precision Angle Adjustment for Optimized Spectator Experience

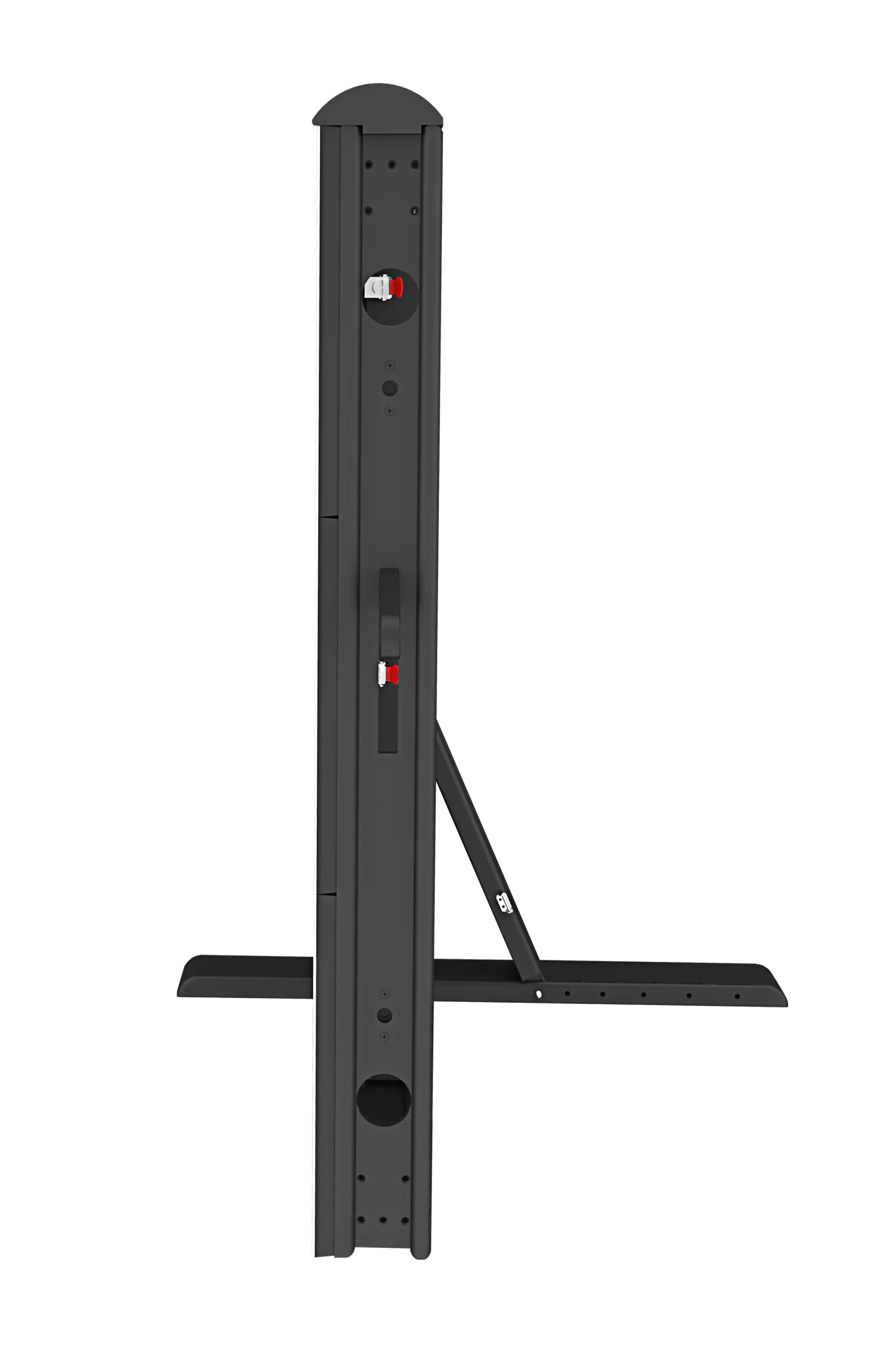

Every stadium has a unique layout, and Adhaiwell’s perimeter screens are built to adapt. Featuring a robust, adjustable support system, our cabinets can be tilted at 90°, 95°, 100°, 105°, 110°, and 115°. This precision ensures the screen is always perpendicular to the fans’ line of sight, maximizing brightness and clarity while eliminating blind spots across the entire arena.

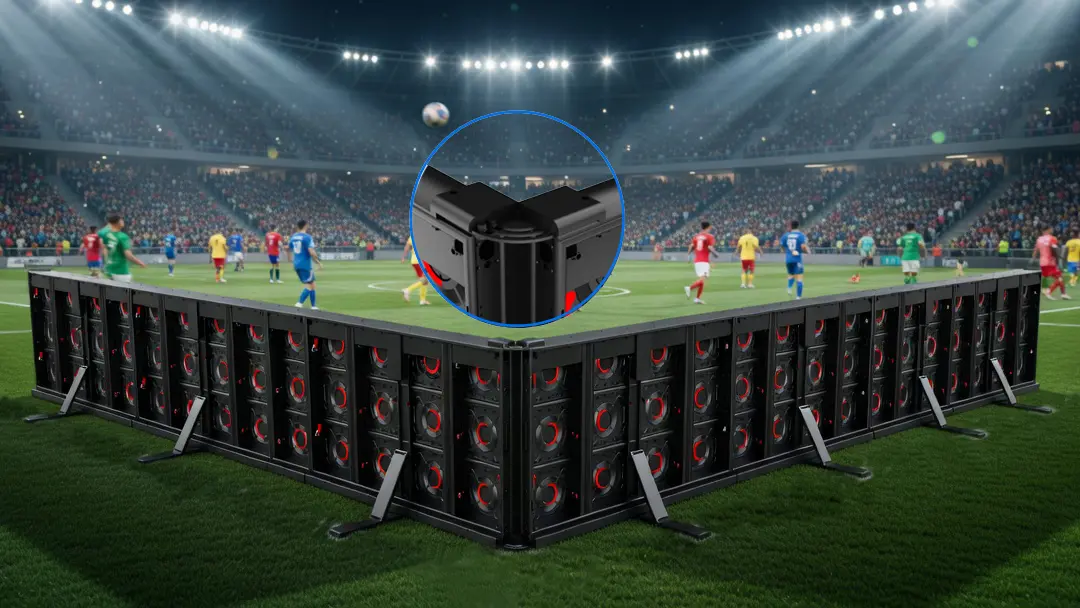

Exclusive Pro Upgrade | Engineering Excellence

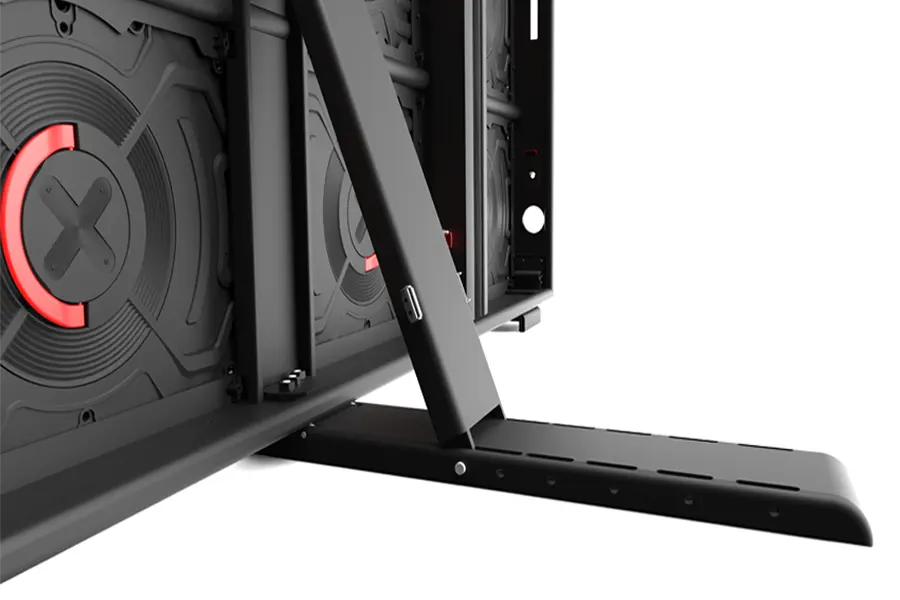

Advanced 90° – 180° Rotatable System: The Pro-Series Optional Advantage
Elevate your stadium infrastructure with our Pro-Series exclusive upgrade. This premium Optional feature introduces a revolutionary rotatable mechanism, allowing precision adjustment between 90° and 180°. Specifically engineered for elite venues with complex corner geometries, this system guarantees a flawless, seamless corner fit that traditional fixed displays cannot achieve. By choosing this Pro-Series option, you ensure a continuous, natural visual flow that eliminates blind spots and delivers a truly panoramic advertising experience for every sponsor.

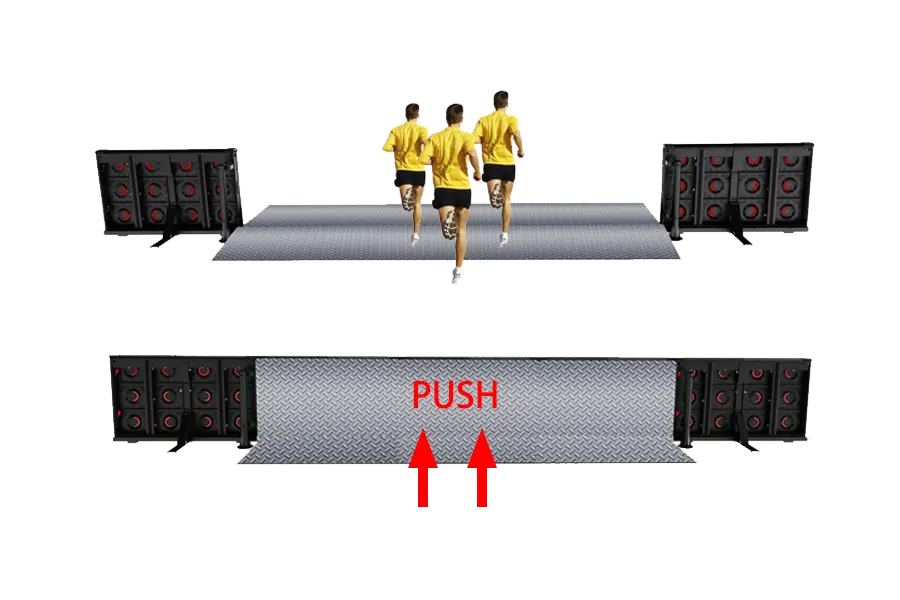

Pro-Series Optional Safety Features
Emergency Access & Fire-Barrier System: Uncompromising Athlete & Spectator Safety
Safety is the ultimate priority in modern stadium management. The Adhaiwell Pro-Series exclusive upgrade integrates a specialized rapid-push evacuation door and an anti-slip safety pedal design. In critical scenarios, the perimeter LED screen can be instantly pushed down to create an unobstructed emergency passage for personnel and fans. Beyond physical escape, our fire-barrier engineering serves as a strategic shield, preventing flame spread along the display line. Combined with high-density athlete protection foam, this premium optional configuration ensures your venue meets the most rigorous international safety protocols while protecting your brand’s reputation.
Aluminum Profile Perimeter LED Display Specifications（1600 x 900mm）
|
Item |
P5 |
P6.25 |
P8.33 |
P10 |
|---|---|---|---|---|
|
Pixel Pitch |
5 mm |
6.25mm |
8.33mm |
10mm |
|
Pixel Configuration |
SMD 1921 |
SMD 2727 |
SMD 2727 |
SMD 2727 |
|
Cabinet Size (W x H) |
1600mm x 900mm |
1600mm x 900mm |
1600mm x 900mm |
1600mm x 900mm |
|
Density (Pixels/㎡) |
40,000 |
25,600 |
25,600 |
16,384 |
|
Module Size (WxH) |
400mm x 300mm |
400mm x 300mm |
400mm x 300mm |
400mm x 300mm |
|
Module Resolution |
80 dots x 60 dots |
64dots x 48 dots |
48dots x 36dots |
40dots x 30dots |
|
Driving Mode |
1/6scan |
1/6scan |
1/3scan |
1/2scan |
|
Cabinet Resolution(dots) |
320dots x 180 dots |
256dots x 144dots |
192dots x 108dots |
160dots x 90dots |
|
Cabinet Weight Cabinet Material |
35Kg Aluminum Profile |
35Kg Aluminum Profile |
35Kg Aluminum Profile |
35Kg Aluminum Profile |
|
Brightness (nit) |
6,500~10,000 (Option) |
6,500~10,000 (Option) |
6,500~10,000 (Option) |
6,500~10,000 (Option) |
|
Refresh Rate |
3840Hz ~ 7680 Hz(Option) |
3840Hz ~ 7680 Hz(Option) |
3840Hz ~ 7680 Hz(Option) |
3840Hz3840Hz ~ 7680 Hz(Option) |
|
Gray Grade (Bits) |
14 bits~16bits |
14 bits~16bits |
14 bits~16bits |
14 bits~16bits |
|
Viewing Angle |
H:160°/V160° |
H:160°/V160° |
H:160°/V160° |
H:160°/V160° |
|
Contrast Ratio |
10000 : 1 |
10000 : 1 |
10000 : 1 |
10000 : 1 |
|
Minimum Viewing Distance |
5m ~ 200 m |
6.25m ~ 200 m |
8.33m~ 200 m |
10m~ 200 m |
|
IP Grade |
IP65 |
IP65 |
IP65 |
IP65 |
|
Maximum Power Consumption |
680W/m² |
680W/m² |
680W/m² |
680W/m² |
|
Average Power Consumption |
200W/m² |
200W/m² |
200W/m² |
200W/m² |
|
Working Temperature (ºC) |
-20 ºC~ +65 ºC |
-20 ºC~ +65 ºC |
-20 ºC~ +65 ºC |
-20 ºC~ +65 ºC |
|
Operating Humidity |
10%~90% |
10%~90% |
10%~90% |
10%~90% |
|
Inout Voltage |
AC 110 V ~ AC 240 V |
AC 110 V ~ AC 240 V |
AC 110 V ~ AC 240 V |
AC 110 V ~ AC 240 V |
|
Operating System |
Win7,Win8, Win10, Win 11etc |
Win7,Win8, Win10, Win 11etc |
Win7,Win8, Win10, Win 11etc |
Win7,Win8, Win10, Win 11etc |
|
Controlling system |
Novastar Wifi/LAN/4G/Cloud Platform/ App |
Novastar Wifi/LAN/4G/Cloud Platform/ App |
Novastar Wifi/LAN/4G/Cloud Platform/ App |
Novastar Wifi/LAN/4G/Cloud Platform/ App |

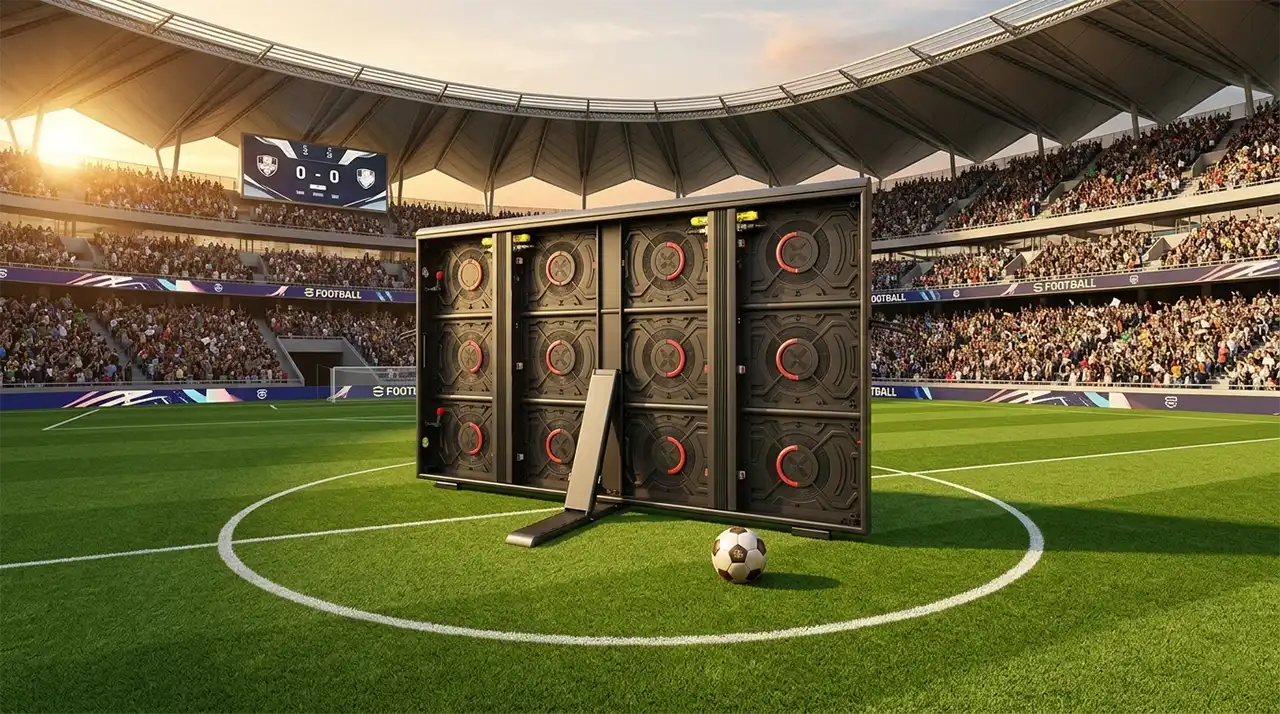

Adhaiwell Pro-Series | Industry-Leading Engineering
Direct from China Manufacturer: 35KG Ultra-Lightweight Aluminum Profile Stadium Screens
As a premier China-based manufacturer, Adhaiwell redefines arena standards with our 1600mm x 900mm aluminum profile perimeter LED screen series. By sourcing directly from our Shenzhen processing center, you leverage a revolutionary 35KGS lightweight cabinet that drastically reduces structural load and international shipping costs. This energy-saving LED display features a slim 98mm profile and broadcast-grade 3840Hz high refresh rate, ensuring vibrant, flicker-free content for high-stakes sports advertising. Engineered for elite global venues, our aluminum structure provides superior heat dissipation and IP65-rated outdoor durability for a high-ROI perimeter solution.
Professional Stadium Perimeter LED Display FAQ | Adhaiwell
Get expert answers to common questions about our FIFA-standard LED stadium screens, focusing on athlete safety, ultra-light aluminum design, and high-performance broadcasting requirements
Q1: What are the key advantages of Adhaiwell’s 1600mm x 900mm aluminum profile stadium screens?
A: Unlike standard die-cast cabinets, Adhaiwell’s pro-series 1600mm series is specifically engineered for stadium perimeter layouts. The aluminum profile structure ensures superior heat dissipation and extreme lightweight (only 35KGS per cabinet), reducing both installation labor and international shipping costs while maintaining IP65 weatherproof durability.
Q2: Does your stadium LED display meet FIFA and UEFA safety standards?
A: Yes. Our Pro-series is designed with athlete safety as a priority. It features a high-density soft mask and top-protection athlete foam to prevent injury during high-impact collisions. Additionally, our integrated emergency escape system allows screens to be pushed down instantly for rapid spectator evacuation, complying with international venue safety protocols.
Q3: What refresh rate and brightness levels do you offer for live sports broadcasting?
A: For flicker-free broadcasting on TV and slow-motion replays, we provide a 3840Hz high refresh rate. The brightness is adjustable up to 6500-7500 nits, ensuring the screen remains vibrant even under direct sunlight in open-air arenas.
Q4: Can the stadium screen be adjusted for different viewing angles?
A: Certainly. Our pro-series upgrade includes a foldable support bracket that allows the cabinet tilt to be adjusted between 90° and 180°. This flexibility ensures the best viewing angle for both live spectators and broadcast cameras, regardless of the stadium’s seating geometry.
Q5: Is front or rear maintenance available for your perimeter LED displays?
A: Adhaiwell supports dual-maintenance solutions. Modules, power units, and receiving cards can be serviced from the front or rear, allowing for quick repairs during live events without dismantling the entire perimeter structure.
Q6: As a China-based manufacturer, how does Adhaiwell ensure quality for international projects?
A: Every display undergoes a 72-hour rigorous aging test in our Shenzhen factory. We use Tier-1 components (like Nationstar LEDs and Meanwell power units) and our products are CE, RoHS, and FCC certified, ensuring full compliance with European and North American regulatory standards.
Q7: What is your typical lead time and shipping method for a full stadium project?
A: For standard stadium perimeter orders, our production lead time is 20-25 days. We partner with Many Logistics to provide reliable sea, air, or rail freight options. We also provide full technical documentation to assist your local customs clearance.
Q8: Do you provide on-site installation support for large-scale sports arena projects?
A: We offer comprehensive remote technical guidance and can dispatch expert engineers for on-site supervision and commissioning for landmark projects, such as our recent 3D LED installations in Africa and the Caribbean.
