R3 Series Indoor & Outdoor Rental LED Screen | Lightweight Die-Cast Aluminum Cabinet | P1.5 P1.9 P2.6 P2.9 P3.9 P4.8 Mobile LED Panel | The Ultimate Visual Solution for High-End Stages and Global Events.
Whether you are looking for a seamless LED backdrop for a corporate launch, a rugged IP65 outdoor LED wall for music festivals, or a curved LED display for creative stage sets, the Adhaiwell R3 Series delivers unmatched stability and visual clarity. Engineered for event professionals who prioritize Total Cost of Ownership (TCO), this series combines high-refresh rates (3840Hz+) with a modular architecture for the most demanding rental environments.
Adhaiwell Indoor & Outdoor Rental LED Screen: Key Features & Technical Highlights
- Adaptive Arc-Lock System for Creative Freedom: Features an innovative half-arc lock allowing for micro-adjustments in 2.5° increments (-5°, -2.5°, 0°, +2.5°, +5°). Build seamless straight walls, concave/convex curves, or full cylindrical screens without extra accessories.
- Cinematic Visuals & Camera-Ready Performance: Powered by true 16-bit grayscale and a 3840Hz+ refresh rate. The R3 ensures flicker-free performance under stage lighting and on-camera, making it the premier choice for XR virtual production and live global broadcasts.

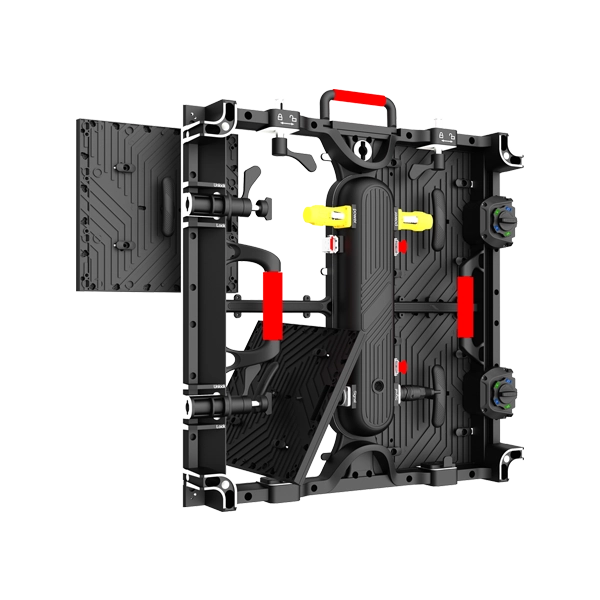

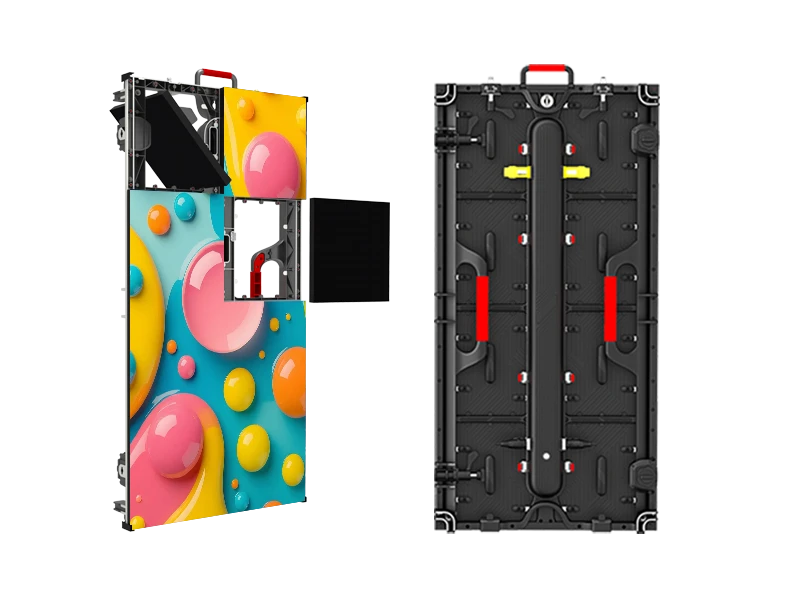

- Dual Front & Rear Tool-Free Maintenance: Designed with a plug-and-play integrated power box and independent modules. A single technician can swap components from either side in under 10 seconds, ensuring zero downtime during critical live events.

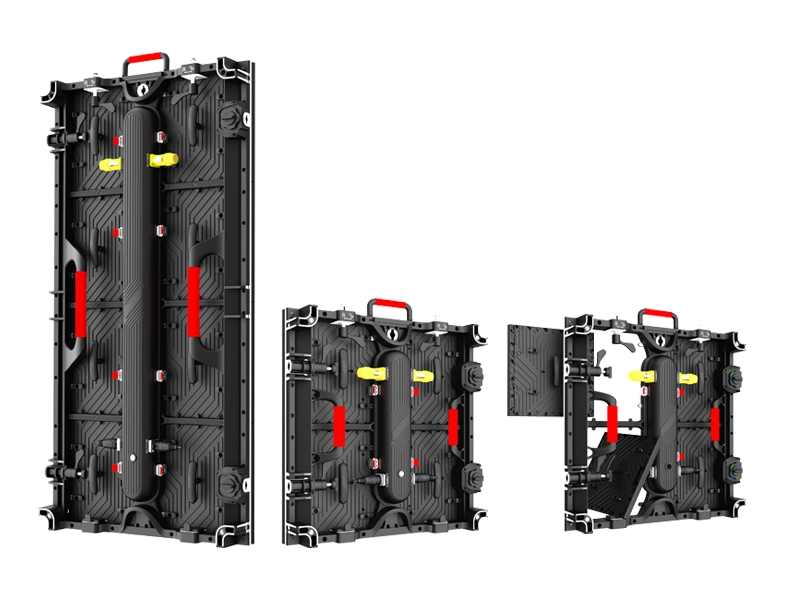

- Ultra-Lightweight Modular Scalability: Die-cast aluminum cabinets weigh only 8kg (500 x 500 mm) and 14.5kg (500 x 1000 mm). These formats can be mixed vertically to fit any venue dimension while significantly reducing rigging stress and labor costs.
- Tour-Grade Ruggedness & Impact Resistance: Equipped with foldable protective corner guards and anti-collision bottom features. The high-precision enclosure is built to withstand hundreds of rigorous load-ins and load-outs, protecting your long-term investment.
- High-Brightness All-Weather Reliability: Delivering up to 4500 nits for outdoor versions and an IP65 rating, the R3 performs flawlessly in extreme environments from 20 °C to 60°C, ensuring visibility even in direct sunlight.

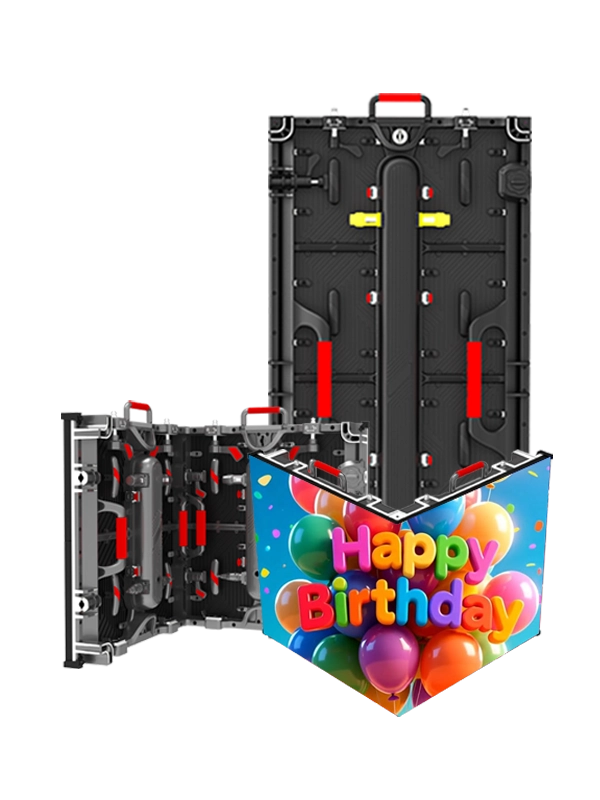

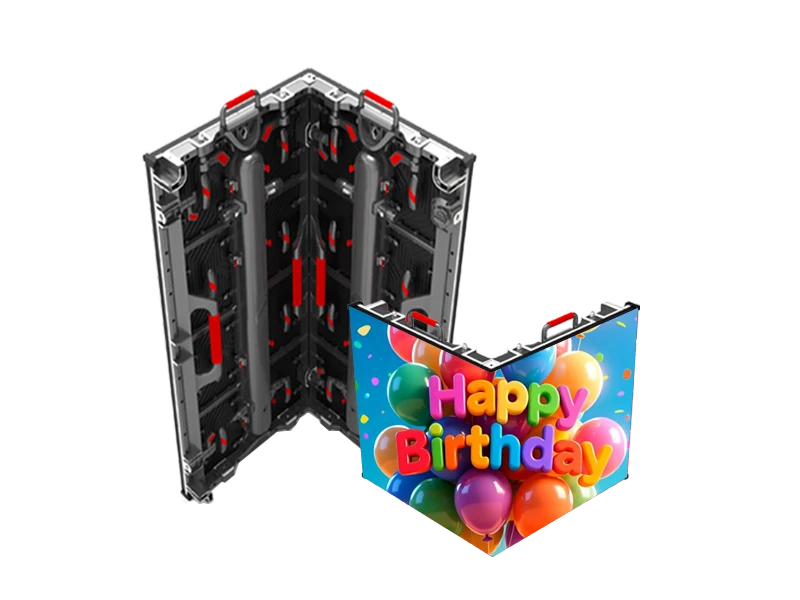

- Seamless 90° Corner for Naked-Eye 3D: Precision-engineered frames enable perfect right-angle assembly, creating an immersive L-shaped canvas ideal for anamorphic 3D creative content and luxury retail landmarks.
- TCO-Optimized Engineering: By integrating the power supply and receiving card into a single heat-dissipating housing, we have eliminated internal cable failure points, maximizing stability and lowering your Total Cost of Ownership (TCO).
- Global Compliance & Safety Standards: Fully certified with CE, RoHS, FCC, CCC. Adhaiwell R3 meets all international safety and quality regulations for seamless deployment in any global market.
Unrivaled Visual immersion: Seamless Massive Canvas
R3 Series: The Ultimate Seamless Rental LED Stage Wall
Experience a flawless, unsegmented display wall engineered with high-precision die-cast aluminum cabinets for perfect alignment. Powered by 16-bit grayscale and a 3840Hz+ refresh rate, the R3 Series eliminates camera flickering, delivering cinematic clarity for concert backdrops, live broadcasts, and immersive XR virtual production.
Ultra-Light Die-Cast Aluminum Rental LED Cabinets – 8kg / 14.5kg, 84mm Slim Profile
Adhaiwell’s ultra-light die-cast aluminum rental LED cabinets redefine event LED display efficiency. With 500x500mm (8kg) and 500x1000mm (14.5kg) sizes and an 84mm ultra-thin profile, these durable cabinets enable fast, tool-free installation for rental LED screens, stage LED video walls, concert LED displays, and 3D naked-eye L-shaped LED walls. Ideal for global rental businesses, our die-cast aluminum cabinets reduce logistics and labor costs while delivering studio-grade visual performance for events, exhibitions, and XR studios worldwide.
The Future of Seamless Stage & 3D LED Displays
Adhaiwell R3 Professional Hard-Link | Dual-Service LED Video Wall: Precision 90° Corner Integration (Option), 10s Front/Rear Maintenance, Delivering Seamless Naked-Eye 3D Visuals for Fast-Turnaround Rental & Stage Deployments, Zero-Failure Stage Deployment.
Infinite Stage Creativity: R3 Precision Arc-Lock System
Master complex stage geometries with our innovative half-arc lock. Effortlessly configure concave, convex, or cylindrical LED walls with precision adjustments from -5° to +5 °, ensuring seamless visual flow in immersive event designs.

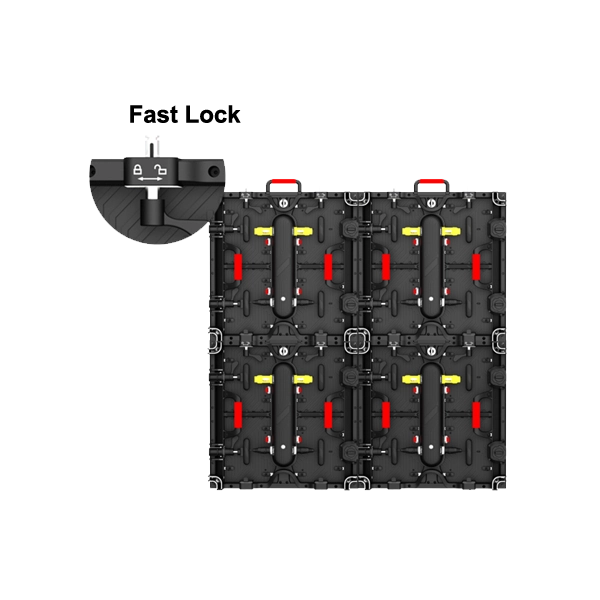

One-Man Rapid Setup: High-Performance Travel Lock
Drastically reduce labor costs and setup time. Our reinforced fast-lock mechanism enables a single technician to complete installation and disassembly, providing superior load-bearing stability and perfect screen flatness for demanding rental tours.
Tour-Grade Reliability: 360° Anti-Collision Protection
Protect your investment with foldable corner guards and a specialized bottom anti-collision design. Engineered to safeguard delicate LED modules during frequent transit and rigorous load-ins, significantly lowering your Total Cost of Ownership (TCO).

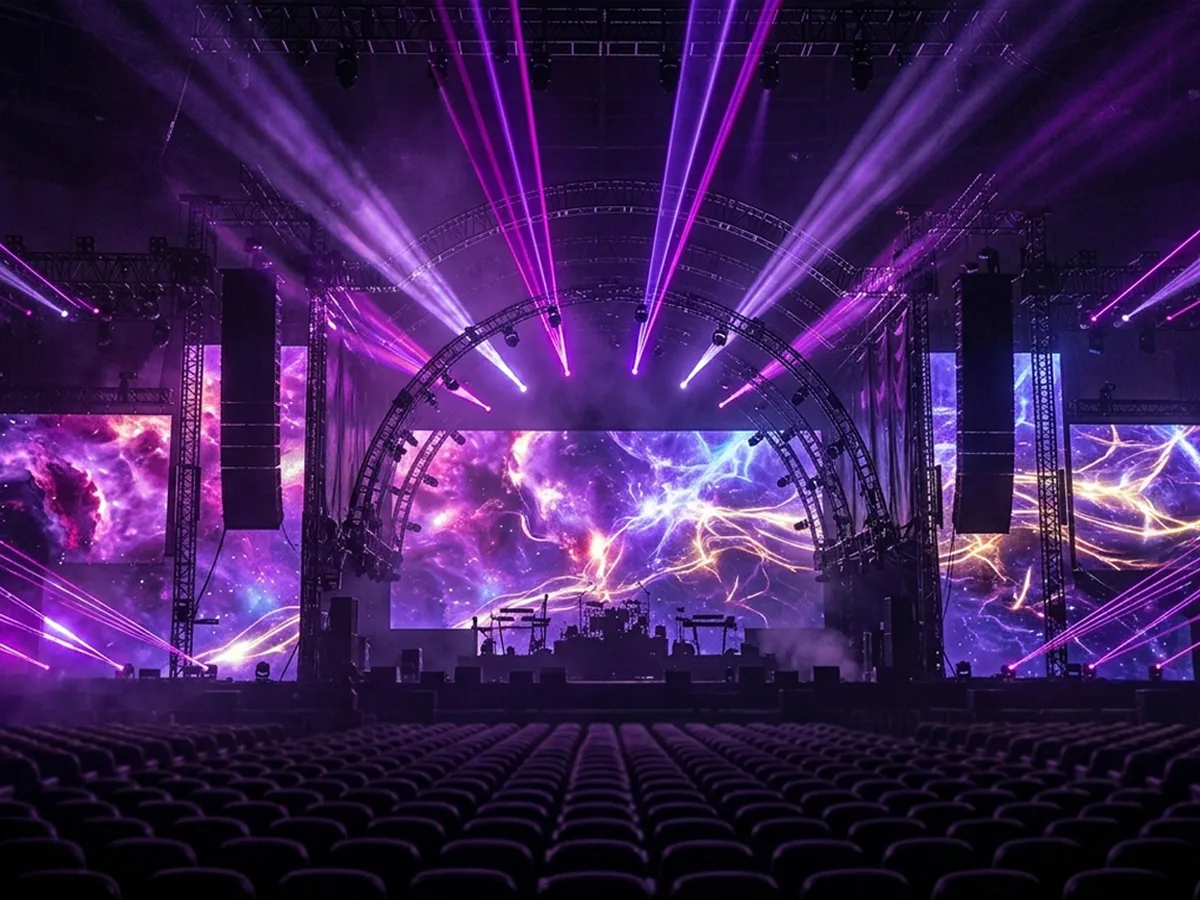

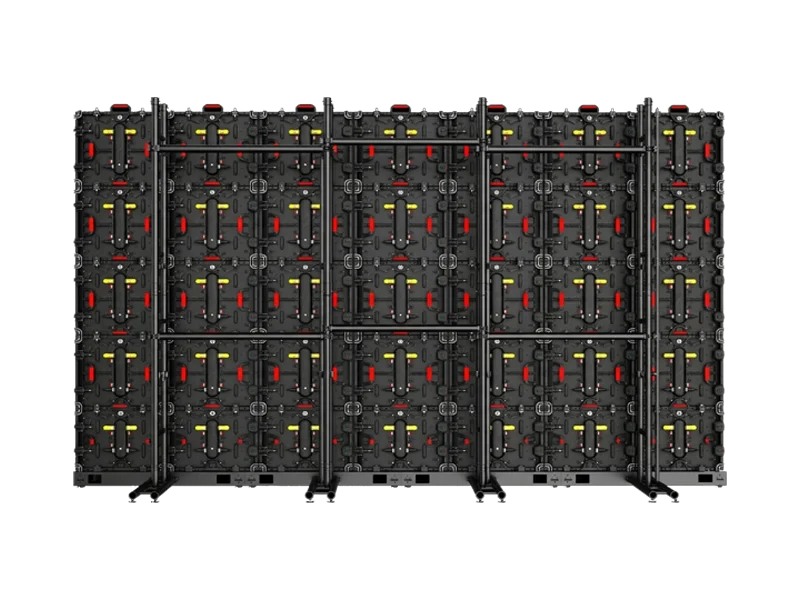

Tour-Grade Stage LED Video Wall Solutions
Elevate your wedding events and corporate galas with the Adhaiwell R3 Series. Featuring a heavy-duty truss frame system and reinforced fast-locks, our large-scale LED walls deliver high-refresh, flicker-free visuals and unmatched structural safety for professional stage backdrops.

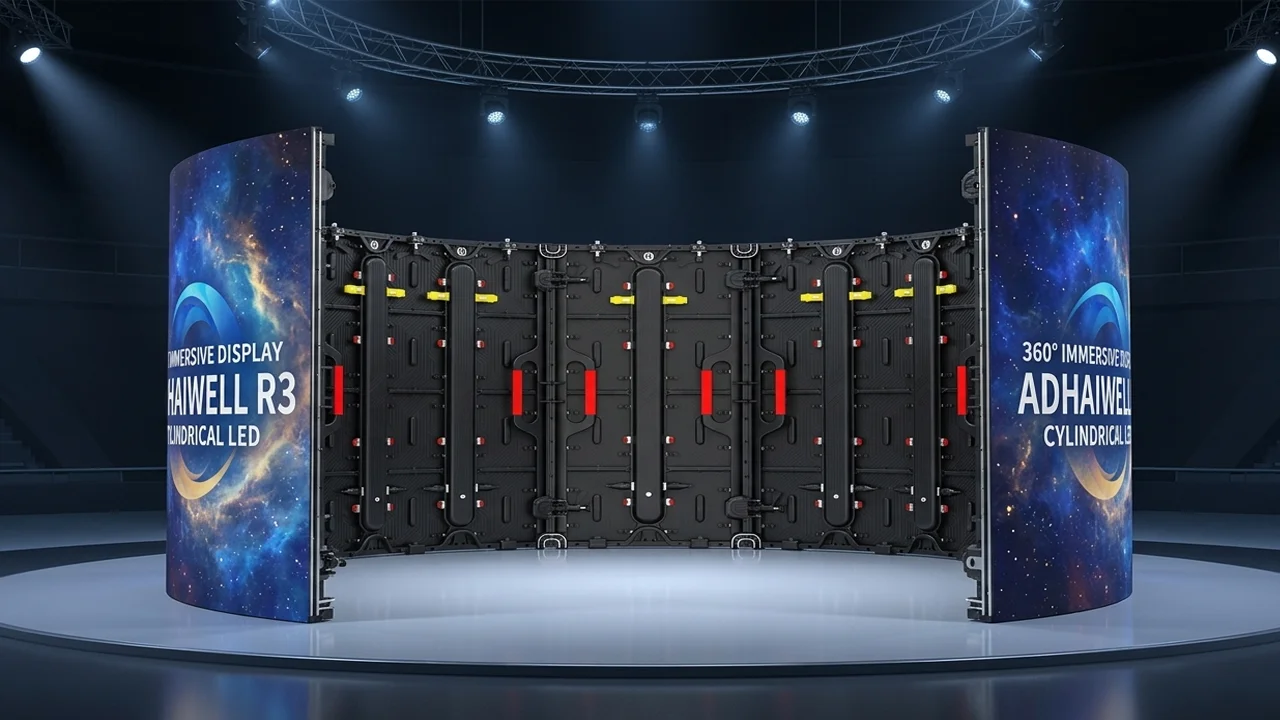

Immersive 360° Cylindrical LED Pillars
Transform exhibition booths and event halls with creative cylindrical displays. Optimized for hanging installations, the R3’s precision arc-locks create a seamless 360° visual flow. Perfect for building immersive digital landmarks that command attention from every viewing angle.

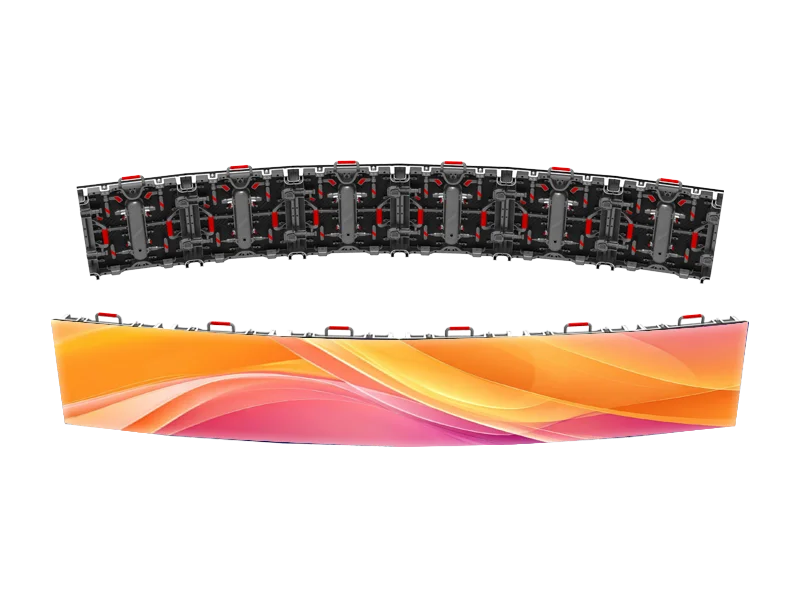

Precision Curved LED for Creative Freedom
Design without limits using our innovative half-arc locks. Easily configure concave or convex S-shaped curves for trade show exhibits and creative stages. Achieving a smooth, unsegmented canvas, the R3 Series is the ultimate tool for high-end rental visual storytelling.
Indoor Rental LED Display | R3 Die-Cast Aluminum Cabinet Specifications
|
Pixel Pitch |
P1.56 |
P 1.95 |
P 2.5 |
P2.604 |
P 2.976 |
P 3.91 |
P 4.81 |
|---|---|---|---|---|---|---|---|
|
Pixel Configuration |
SMD | GOB1212 |
SMD | GOB1515 |
SMD 1515 |
SMD1515 |
SMD1515 |
SMD2020 |
SMD2020 |
|
Protection Grade |
IP31 |
IP31 |
IP31 |
IP31 |
IP31 |
IP31 |
IP31 |
|
LED Module Size (mm) |
250×250 |
250×250 |
250×250 |
250×250 |
250×250 |
250×250 |
250×250 |
|
Module Resolution (Pixel) |
160×160 |
128×128 |
100×100 |
96×96 |
84×84 |
64×64 |
52×52 |
|
Cabinet Size(mm) |
500x500x84 |
500x500x84 |
500x500x84 |
500x500x84 |
500x500x84 |
500x500x84 |
500x500x84 |
|
Cabinet Resolution (Pixel) |
320×320 |
256×256 |
200×200 |
192×192 |
168×168 |
128×128 |
104×104 |
|
Cabinet Material |
Die-cast Aluminum |
Die-cast Aluminum |
Die-cast Aluminum |
Die-cast Aluminum |
Die-cast Aluminum |
Die-cast Aluminum |
Die-cast Aluminum |
|
Cabinet Weight (KG) |
8 |
8 |
8/14.5 |
8/14.5 |
8/14.5 |
8/14.5 |
8/14.5 |
|
Maintenance |
Front/Rear Service |
Front/Rear Service |
Front/Rear Service |
Front/Rear Service |
Front/Rear Service |
Front/Rear Service |
Front/Rear Service |
|
Density (Pixels/㎡) |
409,600 |
262,144 |
160,000 |
147,456 |
112,896 |
65,536 |
43,264 |
|
Brightness (nit) |
600 |
800 |
800 |
800 |
800 |
1000 |
1000 |
|
Color Temperature (K) |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
|
Contrast |
10000: 1 |
10000: 1 |
10000: 1 |
10000: 1 |
10000: 1 |
10000: 1 |
10000: 1 |
|
Gray Grade (Bits) |
16 |
16 |
16 |
16 |
16 |
16 |
16 |
|
Drive mode |
1/40 Scan |
1/32 Scan |
1/25 Scan |
1/32 Scan |
1/28 Scan |
1/16 Scan |
1/13 Scan |
|
Refresh Frequency (Hz) |
≥3840 |
≥3840 |
≥3840 |
≥3840 |
≥3840 |
≥3840 |
≥3840 |
|
Viewing angle(V/H) |
160°/160° |
160°/160° |
160°/160° |
160°/160° |
160°/160° |
160°/160° |
160°/160° |
|
Max. power consumption(W/sqm) |
800 |
800 |
800 |
800 |
800 |
800 |
800 |
|
Avg. power consumption(W/sqm) |
200-300 |
200-300 |
200-300 |
200-300 |
200-300 |
200-300 |
200-300 |
|
Working Temperature (ºC) |
-20 ~ 60 |
-20 ~ 60 |
-20 ~ 60 |
-20 ~ 60 |
-20 ~ 60 |
-20 ~ 60 |
-20 ~ 60 |
|
Power input |
AC90-264V,47-63Hz |
AC90-264V,47-63Hz |
AC90-264V,47-63Hz |
AC90-264V,47-63Hz |
AC90-264V,47-63Hz |
AC90-264V,47-63Hz |
AC90-264V,47-63Hz |
Outdoor Rental LED Display | R3 Die-Cast Aluminum Cabinet Specifications
|
Pixel Pitch |
P2.604 |
P 2.976 |
P 3.91 |
P 4.8 |
|---|---|---|---|---|
|
Pixel Configuration |
SMD1515 |
SMD1515 |
SMD2020 |
SMD2020 |
|
Protection Grade |
IP65 |
IP65 |
IP65 |
IP65 |
|
LED Module Size (mm) |
250×250 |
250×250 |
250×250 |
250×250 |
|
Module Resolution (Pixel) |
96×96 |
84×84 |
64×64 |
52×52 |
|
Cabinet Size(mm) |
500x500x84 |
500x500x84 |
500x500x84 |
500x500x84 |
|
Cabinet Resolution (Pixel) |
192×192 |
168×168 |
128×128 |
104×104 |
|
Cabinet Material |
Die-cast Aluminum |
Die-cast Aluminum |
Die-cast Aluminum |
Die-cast Aluminum |
|
Cabinet Weight (KG) |
8/14.5 |
8/14.5 |
8/14.5 |
8/14.5 |
|
Maintenance |
Front/Rear Service |
Front/Rear Service |
Front/Rear Service |
Front/Rear Service |
|
Density (Pixels/㎡) |
147,456 |
112,896 |
65,536 |
43,264 |
|
Brightness (nit) |
4500 |
4500 |
5000 |
5000 |
|
Color Temperature (K) |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
|
Contrast |
10000: 1 |
10000: 1 |
10000: 1 |
10000: 1 |
|
Gray Grade (Bits) |
16 |
16 |
16 |
16 |
|
Drive mode |
1/32 Scan |
1/28 Scan |
1/16 Scan |
1/13 Scan |
|
Refresh Frequency (Hz) |
≥3840 |
≥3840 |
≥3840 |
≥3840 |
|
Viewing angle(V/H) |
160°/160° |
160°/160° |
160°/160° |
160°/160° |
|
Max. power consumption(W/sqm) |
800 |
800 |
800 |
800 |
|
Avg. power consumption(W/sqm) |
200-300 |
200-300 |
200-300 |
200-300 |
|
Working Temperature (ºC) |
-20 ~ 60 |
-20 ~ 60 |
-20 ~ 60 |
-20 ~ 60 |
|
Power input |
AC90-264V,47-63Hz |
AC90-264V,47-63Hz |
AC90-264V,47-63Hz |
AC90-264V,47-63Hz |

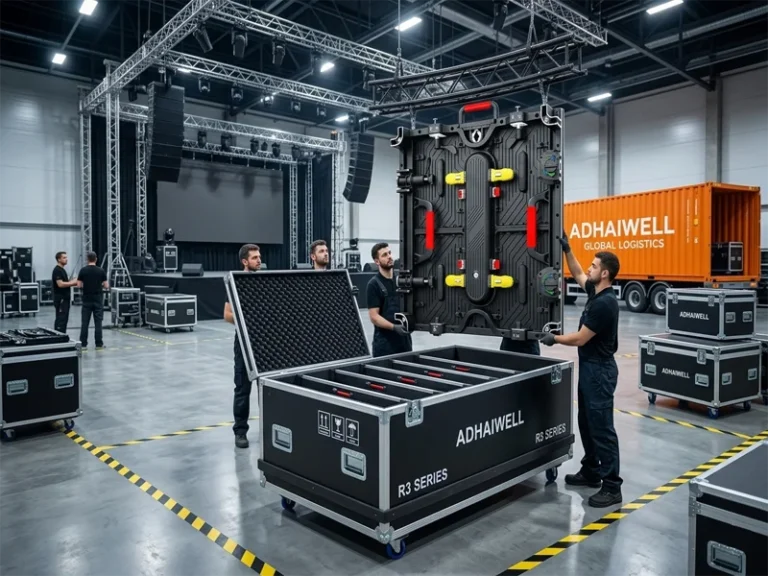

From Flight Case to Truss Center Stage: Adhaiwell’s Secure Logistics Ecosystem
Minimize downtime and protect your high-value assets with Adhaiwell’s road-proven transport solutions. Our R3 Rental LED Screen Series rental ecosystem is engineered to bridge the gap between global logistics and flawless event execution.
Adhaiwell R3 Series: The Elite Modular Rental LED Wall for Global Stages
Engineered for global stage deployments, the R3 Series delivers uncompromising reliability with Novastar/Nationstar components and rigorous testing. From our Shenzhen factory to your event venue, we ensure full transparency at every step—partner with a manufacturer built for rental business success.

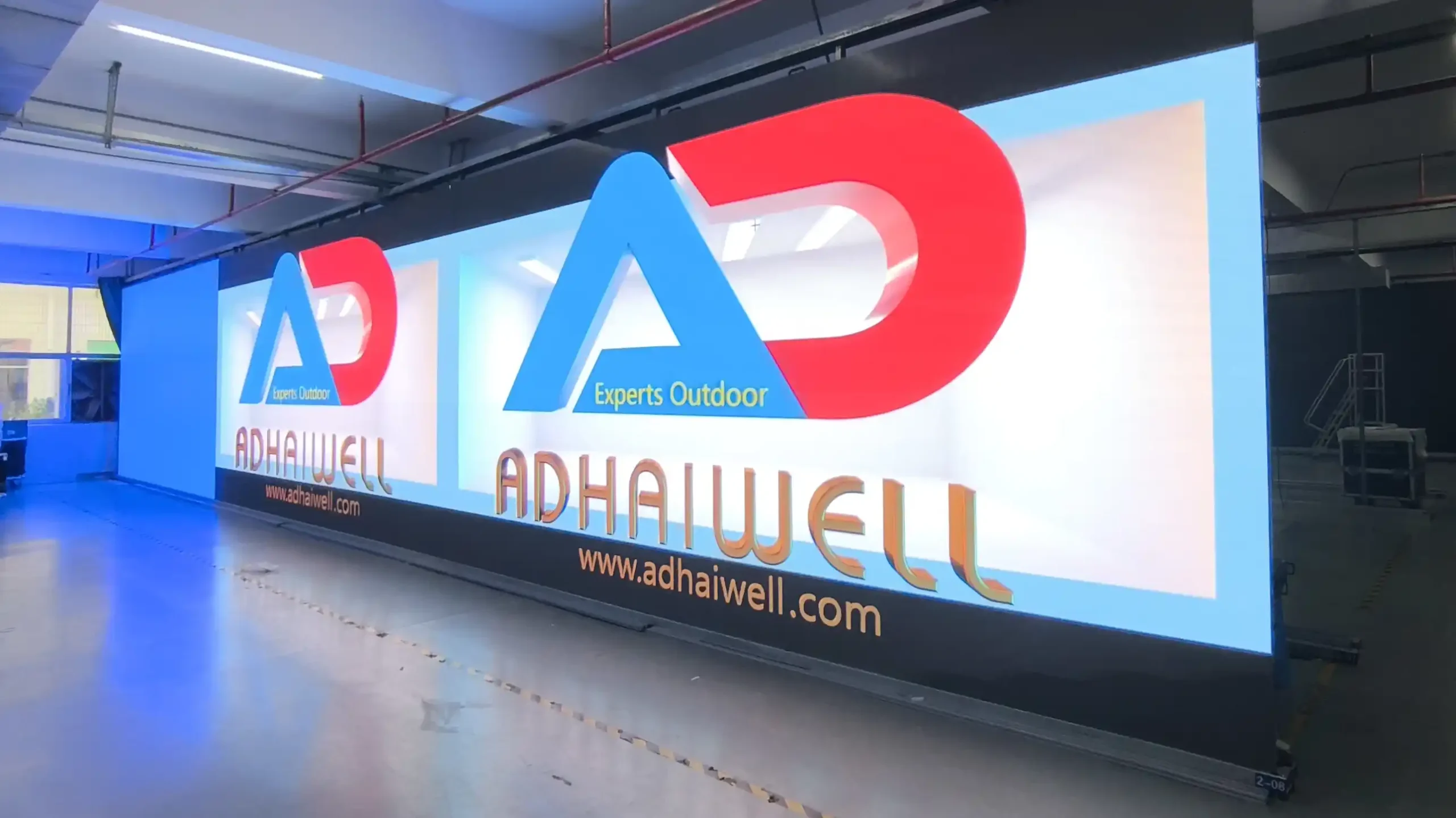

Experience a 100% transparent manufacturing journey. From precision engineering in our Shenzhen workshop to the grandeur of concert stages across Europe, North America, and the Middle East, the R3 Series defines reliability through rigorous third-party testing and world-class components from industry leaders like Novastar and Nationstar.
From initial raw material selection to final loading for shipment, we sync every detail with our overseas clients. Partner with a manufacturer that prioritizes your peace of mind, delivering zero-failure rental LED displays built for fast stage deployment, global logistics, and long-term rental business success.
Adhaiwell R3 Series: Expert Answers for Professional Rental LED Displays
Explore the technical innovations that define the R3 Series. From patented corner protection to high-precision arc-lock systems, we provide the structural reliability and cinematic performance required for global concert tours, elite exhibitions, and creative stage builds. Discover how Adhaiwell minimizes your Total Cost of Ownership (TCO) while maximizing visual impact.
Q1: What are the unique structural advantages of the Adhaiwell R3 Series for stage rental?
A: The R3 Series features a precision-engineered die-cast aluminum chassis designed for rapid deployment. It integrates high-precision arc locks allowing for micro-adjustments in 2.5° increments, and patent-pending foldable corner guards to prevent LED pixel damage during unboxing.
Q2: How does the R3 Series achieve seamless curved LED screen configurations?
A: Utilizing our innovative dual-dial arc locking system, technical crews can easily lock cabinets into concave or convex configurations between -5°and +5°. This ensures a smooth, unsegmented visual flow for 360-degree immersive cylindrical displays or wave-shaped backdrops.
Q3: Can the R3 Series be used for both indoor exhibitions and outdoor concert stages?
A: Yes. The R3 Series is optimized for both environments. For outdoor stage rental, it offers high-brightness LEDs (Nationstar) and IP65 waterproof protection. For exhibitions, its high-refresh-rate and silent cooling design make it perfect for up-close viewing and cinematic backdrops.
Q4: Is the system compatible with standard professional rigging hardware?
A: Absolutely. The R3 cabinets are fully compatible with tour-grade truss frame systems. Our reinforced fast-lock mechanisms and ergonomic red handles enable one-man installation, significantly reducing labor costs and setup time for corporate events.
Q5: What is Adhaiwell’s “Transparent Manufacturing” process for overseas clients?
A: We provide full-process synchronization. Every project, like our recent French P2.6 outdoor delivery, includes video documentation of 72-hour aging tests, RGBW pixel-deadness checks, and impact resistance testing. This ensures 100% transparency and Zero-Failure performance upon arrival.
Q6: How does Adhaiwell ensure the safety of the LED panels during international shipping?
A: We utilize professional, tour-ready flight case solutions. Customers can choose 8-in-1 or 12-in-1 configurations lined with high-density, shock-absorbent EVA foam partitions. Combined with our anti-collision cabinet design, we guarantee showroom-condition delivery for global logistics.
Q7: Which control systems and components does Adhaiwell use for rental displays?
A: To protect your long-term Total Cost of Ownership (TCO), we strictly use industry-gold standard components: Novastar receiving cards and TB series multimedia players, Nationstar LED lamps, and CE-certified Meanwell power units.
