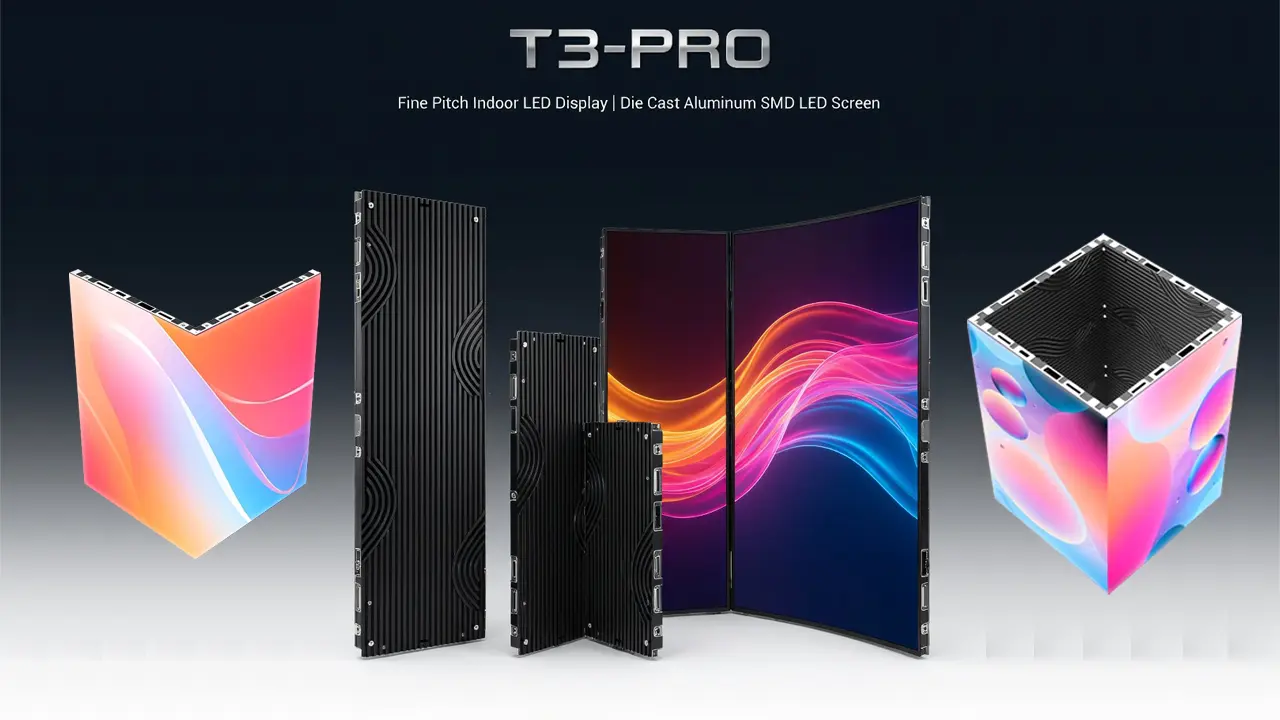

Indoor Fine Pitch LED Video Wall: Die-Cast Aluminum SMD Screen for Retail, Shopping Mall & Airport Projects
Experience the next generation of architectural display with Adhaiwell’s T3-PRO Series. Engineered for high-traffic environments like luxury malls and airports, this 33mm ultra-slim die-cast aluminum screen redefines spatial efficiency. Supporting both seamless 90-degree pillar wraps and high-definition 4K flight information walls, the T3-PRO combines a cable-free internal structure with modular flexibility (P1.25 – P2.5) to transform any structural surface into a high-performance digital landmark.
Indoor P1.25 / P1.56 / P1.86 / P2.0/ P2.6/P3.91 Fine Pitch LED: Key Features & Technical Highlights

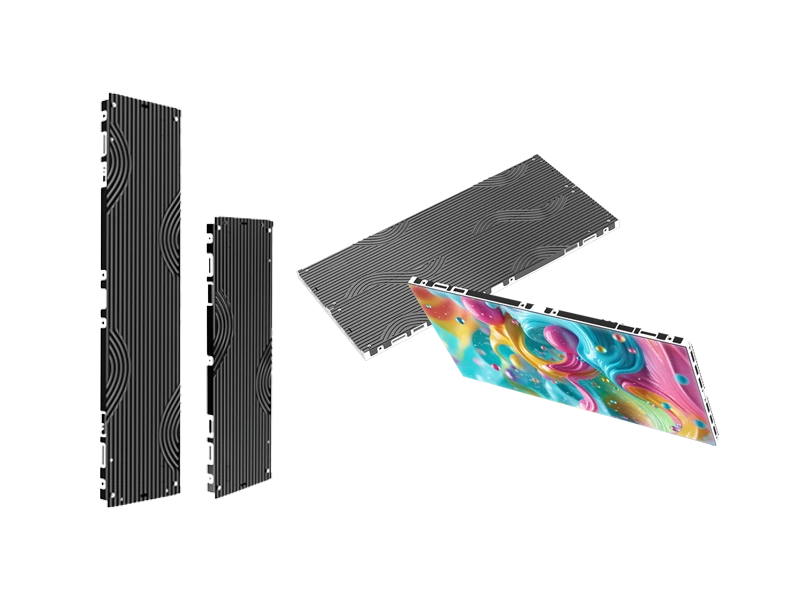

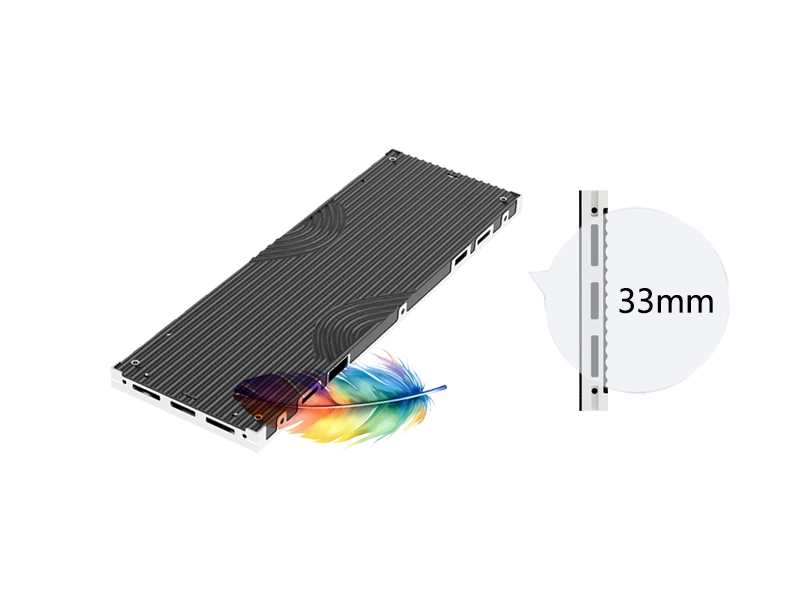

- 33mm Ultra-Slim Architecture: The T3-PRO’s 33mm profile allows the screen to blend seamlessly into walls or pillars, preserving premium floor space in luxury retail and airport environments.

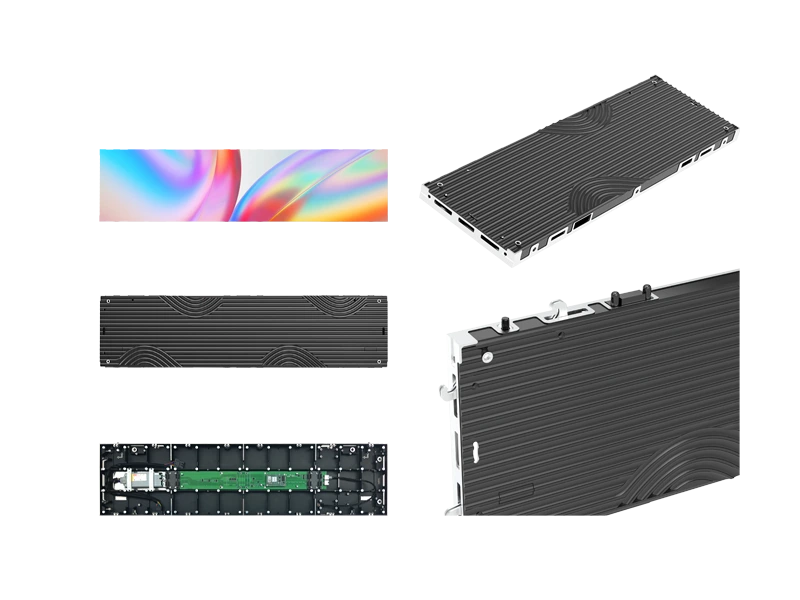

- 100% Zero-Clearance Front Service: Engineered for confined spaces. Every module and component is accessible from the front, eliminating the need for rear maintenance paths and reducing downtime.
- Die-Cast Aluminum Precision: Utilizing a high-grade integrated box body, this series ensures superior thermal dissipation and perfect pixel alignment for long-term 24/7 industrial-grade reliability.
- Seamless 90° Creative Splicing: Transform structural obstacles into digital assets. Our unique semicircular cabinet design supports flawless 90-degree corner wrapping and artistic wave-shaped layouts.
- Hardwired “Cable-Free” Stability: Modules snap into place via a magnetic hard-connection system. By removing internal ribbon cables, we eliminate 90% of signal failure points for a rock-solid display.

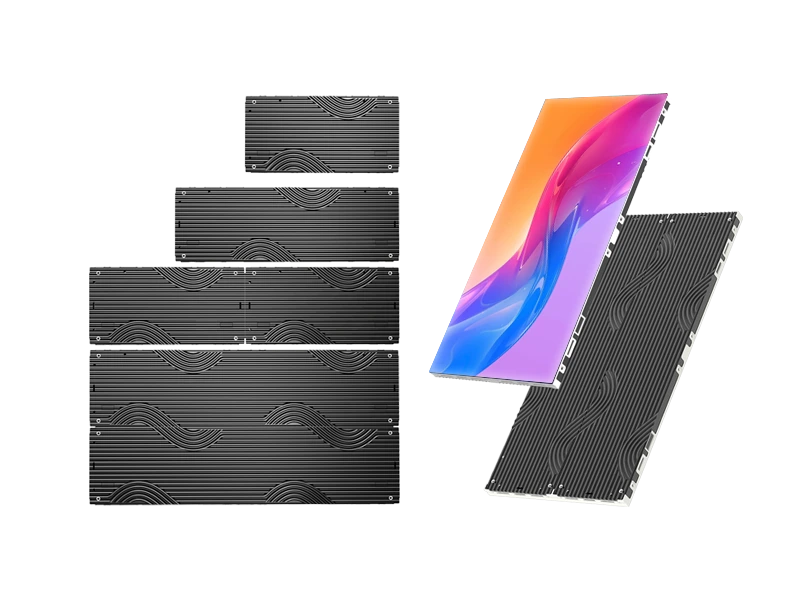

- 3840Hz Broadcast-Level Visuals: High refresh rate and 16-bit grayscale deliver flicker-free, studio-quality imaging—guaranteeing perfect “Instagram-ready” photos for mall visitors and social media.
- Invisible Integrated Wiring: Features a quick-plug interface that reduces external cabling by 50%, significantly cutting down on-site installation time and labor costs for large-scale projects.
- Optional GOB Shield Protection: Available for P1.25 to P1.95 models, providing an extra layer of impact and dust resistance to protect your investment in high-traffic public transit hubs.
PRECISION ENGINEERING & VERSATILE SPECIFICATIONS
T3-PRO Series: Ultra-Slim Die-Cast Aluminum Cabinets | Adhaiwell

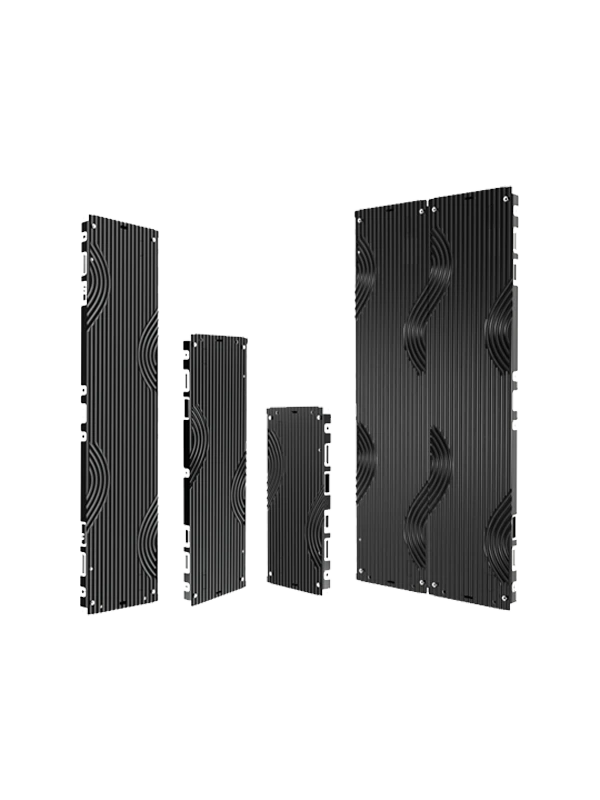

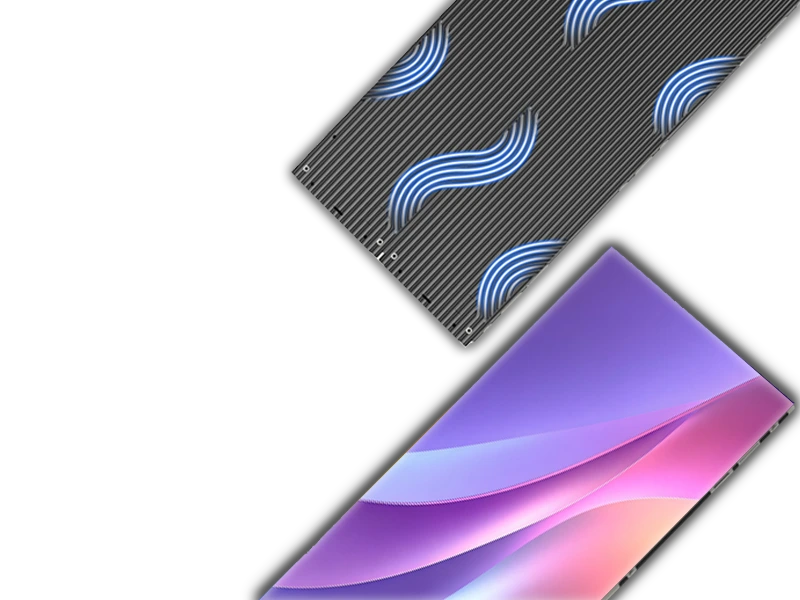

Adhaiwell’s T3-PRO series is built on a high-precision die-cast aluminum integrated box body, maintaining a uniform, ultra-thin 33mm profile. To meet diverse architectural challenges while minimizing structural load, we offer four standardized cabinet sizes with optimized weights: 1000x500mm (9.8kg), 1000x250mm (5.0kg), 750x250mm (4.0kg), and 500x250mm (3.0kg). This modular flexibility ensures a seamless, 4K high-definition finish for everything from massive airport video walls to intricate retail pillar wraps.
Ultra-Slim Die-Cast Design for Seamless Splicing
T3-PRO Series: 4K Fine Pitch LED Video Wall with Die-Cast Precision & Architectural Flexibility
Elite Indoor LED solution for global B2B projects. 33mm ultra-slim die-cast build with 90° corner flexibility. Engineered for 4K clarity in mission-critical command centers, airports, and luxury retail.
Engineered Excellence: Technical Advantages of T3-PRO
- 90° Rotatable Intelligence: Front Access magnetic modules with 160° wide-viewing angles—perfect for broadcast-grade HD studios without color shift.
- Industrial 24/7 Reliability: Featuring Cable-free internal hard connection for maximum uptime in mission-critical command centers and transport hubs.
- True Front-Serviceability: 100% front-access design allows for zero-clearance wall mounting, drastically reducing long-term O&M costs
ENGINEERING EXCELLENCE
Precision-Engineered Details for Rapid Deployment
The Adhaiwell T3-PRO series is built for speed and precision. Featuring an integrated power and signal quick-plug interface, it significantly reduces internal cabling complexity, making on-site assembly faster than ever. Every cabinet is high-precision die-cast aluminum, incorporating alignment pins and cam locks to ensure a perfectly flush, gapless visual surface, maximizing both installation efficiency and the end-user visual experience.
Fine Pitch Indoor LED Display | Die Cast Aluminum SMD LED Screen Specifications
|
Pixel Pitch |
P1.25 |
P 1.56 |
P 1.95 |
P2.5 |
P 2.604 |
P 2.976 |
P 3.91 |
|---|---|---|---|---|---|---|---|
|
Pixel Configuration |
SMD | GOB1010 |
SMD | GOB1212 |
SMD | GOB1515 |
SMD1515 |
SMD1515 |
SMD1515 |
SMD2020 |
|
Protection Grade |
IP31 |
IP31 |
IP31 |
IP31 |
IP31 |
IP31 |
IP31 |
|
LED Module Size (mm) |
250×250 |
250×250 |
250×250 |
250×250 |
250×250 |
250×250 |
250×250 |
|
Module Resolution (Pixel) |
200×200 |
160×160 |
128×128 |
100×100 |
96×96 |
84×84 |
64×64 |
|
Cabinet Size(mm) |
1000×500×33 |
1000×500×33 |
1000×500×33 |
1000×500×33 |
1000×500×33 |
1000×500×33 |
1000×500×33 |
|
Cabinet Resolution (Pixel) |
800×400 |
640×320 |
512×256 |
400×200 |
384×192 |
336×168 |
256×128 |
|
Cabinet Material |
Die-cast Aluminum |
Die-cast Aluminum |
Die-cast Aluminum |
Die-cast Aluminum |
Die-cast Aluminum |
Die-cast Aluminum |
Die-cast Aluminum |
|
Cabinet Weight (KG) |
9.8 / 5.0 / 4.0 / 3.0 |
9.8 / 5.0 / 4.0 / 3.0 |
9.8 / 5.0 / 4.0 / 3.0 |
9.8 / 5.0 / 4.0 / 3.0 |
9.8 / 5.0 / 4.0 / 3.0 |
9.8 / 5.0 / 4.0 / 3.0 |
9.8 / 5.0 / 4.0 / 3.0 |
|
Maintenance |
Front Service |
Front Service |
Front Service |
Front Service |
Front Service |
Front Service |
Front Service |
|
Density (Pixels/㎡) |
640,000 |
409,600 |
262,144 |
160,000 |
147,456 |
112,896 |
65,536 |
|
Brightness (nit) |
600 |
600 |
800 |
800 |
800 |
800 |
800 |
|
Color Temperature (K) |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
5000-12000 Optional |
|
Contrast |
10000: 1 |
10000: 1 |
10000: 1 |
10000: 1 |
10000: 1 |
10000: 1 |
10000: 1 |
|
Gray Grade (Bits) |
14/16 Optional |
14/16 Optional |
14/16 Optional |
14/16 Optional |
14/16 Optional |
14/16 Optional |
14/16 Optional |
|
Drive mode |
1/50 Scan |
1/40 Scan |
1/32 Scan |
1/25 Scan |
1/32 Scan |
1/28 Scan |
1/16 Scan |
|
Refresh Frequency (Hz) |
≥3840 |
≥3840 |
≥3840 |
≥3840 |
≥3840 |
≥3840 |
≥3840 |
|
Viewing angle(V/H) |
160°/160° |
160°/160° |
160°/160° |
160°/160° |
160°/160° |
160°/160° |
160°/160° |
|
Max. power consumption(W/sqm) |
400 |
400 |
400 |
400 |
400 |
400 |
400 |
|
Avg. power consumption(W/sqm) |
100-200 |
100-200 |
100-200 |
100-200 |
100-200 |
100-200 |
100-200 |
|
Working Temperature (ºC) |
-20 ~ 60 |
-20 ~ 60 |
-20 ~ 60 |
-20 ~ 60 |
-20 ~ 60 |
-20 ~ 60 |
-20 ~ 60 |
|
Power input |
AC90-264V,47-63Hz |
AC90-264V,47-63Hz |
AC90-264V,47-63Hz |
AC90-264V,47-63Hz |
AC90-264V,47-63Hz |
AC90-264V,47-63Hz |
AC90-264V,47-63Hz |
VERSATILE INSTALLATION SOLUTIONS
Fine Pitch LED Wall: Flexible Installation for Global Commercial Indoor LED Display Projects

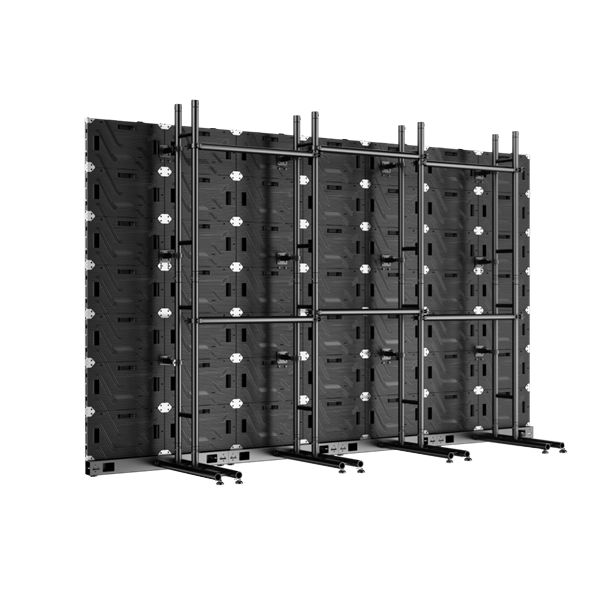

Stacking Installation with Integrated Truss Frame
High-stability truss frame system designed for rapid LED wall deployment. Ideal for stage backdrops and control rooms, ensuring precision alignment and maximum safety on any flat surface

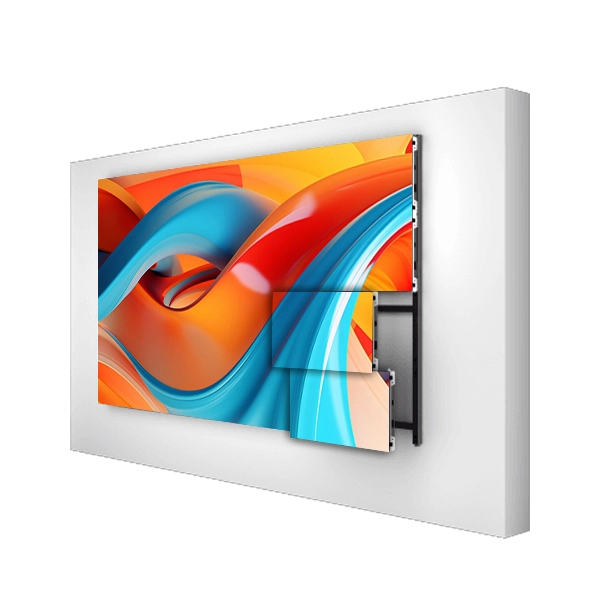

Wall-Mounting for Conference Rooms & Corporate Lobbies
Perfect for luxury retail stores, corporate lobbies, and control rooms. The 33mm ultra-slim profile allows the T3-PRO to blend seamlessly into walls with zero clearance, saving premium floor space.

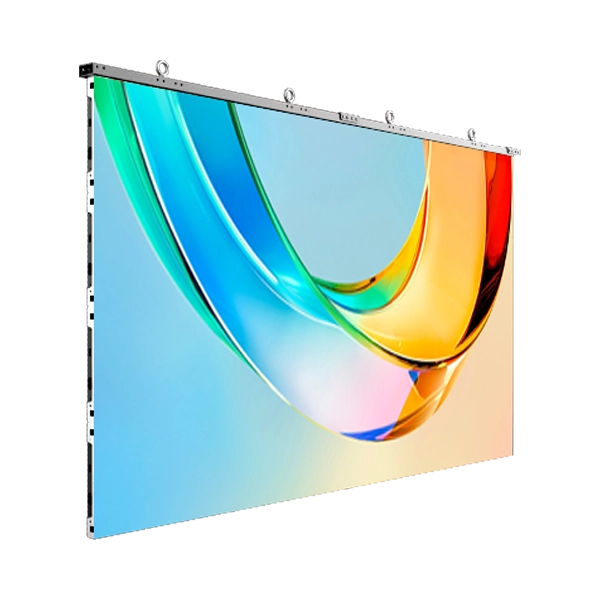

Hanging Installation for Exhibition Halls & Shopping Malls
he ultimate choice for airport terminals, shopping mall atriums, and transit hubs. Engineered with high-strength lightweight cabinets for safe, overhead high-definition visual impact.

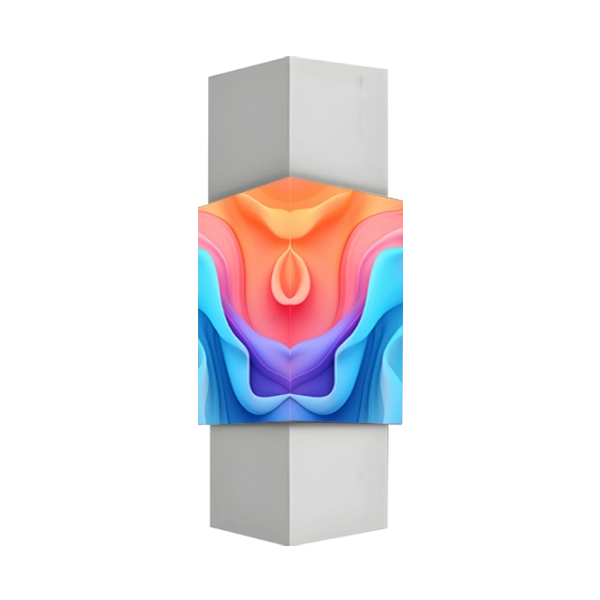

90° Splicing for Creative Corner & Column Installations
Transform structural columns into digital landmarks. Designed for creative pillar wraps and 90-degree corner displays in high-end commercial interiors without any visible gaps.
Fine Pitch LED Walls: Unlimited Creative Installation Possibilities
Adhaiwell T3-PRO die-cast fine pitch LED video walls are engineered for unlimited creative commercial indoor LED installations across the United States, Canada, UK, EU, Middle East, Southeast Asia, and global markets. Built with precision one-piece die-cast aluminum cabinets, the T3-PRO series supports seamless curved, 90° right-angle, and 4-sided column splicing, delivering immersive visuals, zero color shift, and effortless front-access maintenance for high-end projects worldwide.

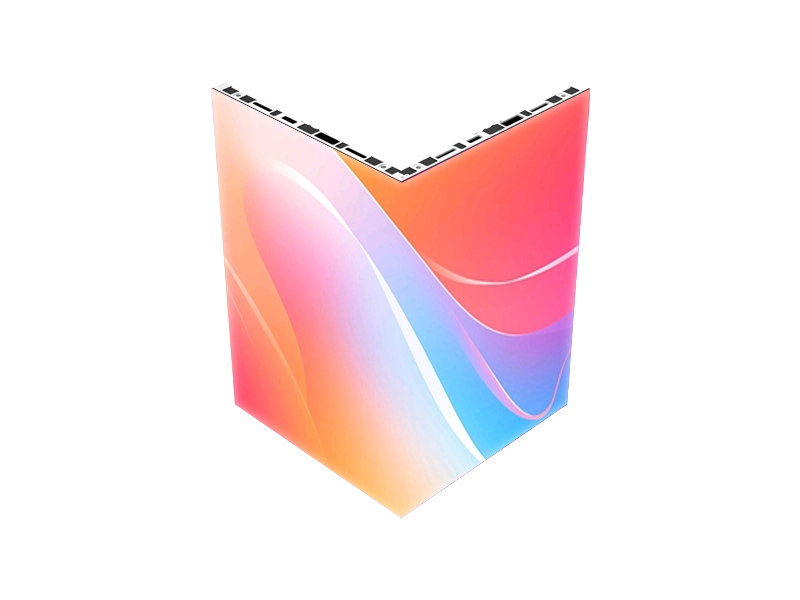

Seamless 90° Corner Splicing
Perfect for luxury retail storefronts and L-shaped video walls. The T3-PRO’s unique cabinet design allows for a true 90-degree right-angle finish with zero visible gaps, creating a smooth, continuous viewing experience that wraps around corners elegantly.

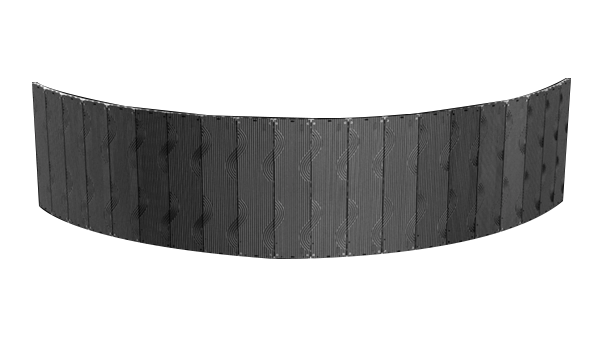

Seamless Wave & Curved Splicing
Designed for high-end interior design and artistic digital signage. Supporting semicircular and wave-like configurations, these fine-pitch modules create fluid visual movements, making them the top choice for flagship showrooms and immersive exhibition halls.

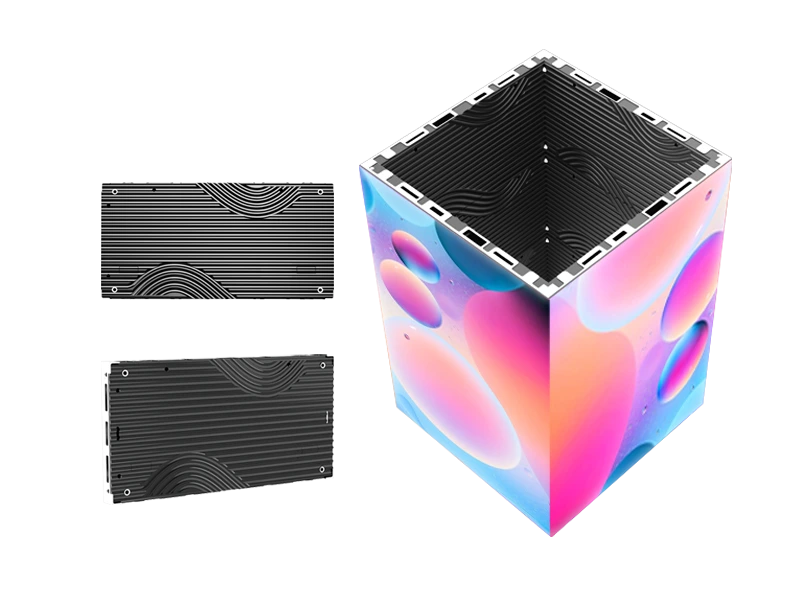

360° Immersive Column Displays
Transform structural obstacles into high-value assets. Our 4-sided column solution provides 360° immersive visuals for airport terminals, hotel lobbies, and shopping mall atriums, delivering high-definition content to audiences from every possible direction.
Fine Pitch Indoor LED Display : From Precision Engineering to Real-World Excellence
Watch our 72-hour aging test and rapid installation demo. See how the 33mm ultra-slim die-cast cabinet and cable-free architecture redefine indoor LED integration.
Verified Factory Aging
Every T3-PRO video wall undergoes a rigorous 72-hour full-white and color-cycle aging test in our Shenzhen facility to ensure zero dead pixels and perfect brightness uniformity before shipping.
True 90° Seamless Splicing
Visual proof of our 4-sided column integration. No physical gaps, no dark lines—just a continuous, high-definition digital surface for architectural landmarks.
Professional Front Access Maintenance
Utilizes a dedicated vacuum suction tool for rapid module removal and replacement. This precision-driven approach protects fine-pitch LEDs from manual damage while ensuring 100% front-access serviceability in tight architectural spaces.
Hard-Wired Reliability
Observe the cable-free internal build. By eliminating internal ribbon cables, we’ve removed the #1 cause of signal failure in fine-pitch displays.
T3-PRO Series: Frequently Asked Questions & Technical Insights
Get expert answers on technical specifications, installation flexibility, and why global integrators choose Adhaiwell’s die-cast aluminum LED solutions for mission-critical environments.
Q1: What are the main advantages of the Adhaiwell T3-PRO’s die-cast aluminum cabinet?
A: Our precision-engineered die-cast aluminum cabinets ensure superior thermal dissipation, structural rigidity, and perfect pixel alignment. The integrated box body prevents warping over time, guaranteeing a seamless visual surface even for massive 4K/8K installations.
Q2: How does the “Cable-Free” hard connection benefit long-term maintenance?
A: Adhaiwell’s hard-wired (cable-free) internal design removes 90% of potential signal failure points associated with traditional ribbon cables. This modular architecture enhances signal stability and simplifies front-access maintenance for professional integrators.
Q3: Is Adhaiwell’s T3-PRO compatible with GOB (Glue on Board) technology?
A: Yes, we offer an optional GOB shield protection for our P1.25 to P1.9 models. This provides an extra layer of impact, dust, and moisture resistance, making it ideal for high-traffic environments like airport terminals and shopping mall corridors.
Q4: Can Adhaiwell’s T3-PRO be used for creative architectural designs like pillar wraps?
A: Absolutely. The T3-PRO supports 90° right-angle splicing and seamless wave configurations. Our unique semicircular cabinet design allows for smooth 360° column wraps, transforming structural obstacles into immersive digital landmarks.
Q5: Is this LED video wall suitable for 24/7 mission-critical environments?
A: Yes, engineered with high-grade components (like Nationstar LEDs and Novastar control systems), the T3-PRO is designed for continuous operation in command centers, broadcasting studios, and corporate lobbies worldwide.
Q6: Does Adhaiwell provide localized technical support for international projects?
A: As a global OEM/ODM manufacturer based in Shenzhen, we provide comprehensive technical documentation, 24/7 online troubleshooting, and remote configuration support for system integrators in the USA, EU, Middle East, and APAC regions.
Q7: What is the standard lead time and shipping method for bulk orders?
A: Standard lead time is typically 15-25 days depending on the pixel pitch and order volume. We offer flexible Incoterms (FOB, CIF, DDP) and professional sea/air freight packaging to ensure safe delivery to your project site.
