Indoor COB LED Display | Fine Pitch Flip-Chip COB LED Video Wall
Ultra-Fine Pixel Pitch. High Contrast. Front-Service Design. Engineered for Premium Indoor Visual Environments.
Adhaiwell Indoor COB LED Display is a fine-pitch Chip-on-Board LED video wall engineered for close-viewing indoor applications where image detail, surface protection, visual consistency and long-term reliability matter.
Unlike conventional SMD LED displays, COB technology mounts LED chips directly onto the PCB substrate and encapsulates the pixel surface as an integrated structure. The result is a denser pixel architecture, protected LED surface, high contrast performance and a smoother visual experience for premium indoor environments.
Available in fine pixel pitches such as P0.9, P1.2, P1.5 and P1.8, the Adhaiwell COB LED display is designed for corporate boardrooms, command and control centers, broadcast studios, executive meeting rooms, high-end retail, education, museums, churches, showrooms and other professional indoor LED video wall projects.
Built for close viewing. Engineered for continuous operation. Designed for professional integration.

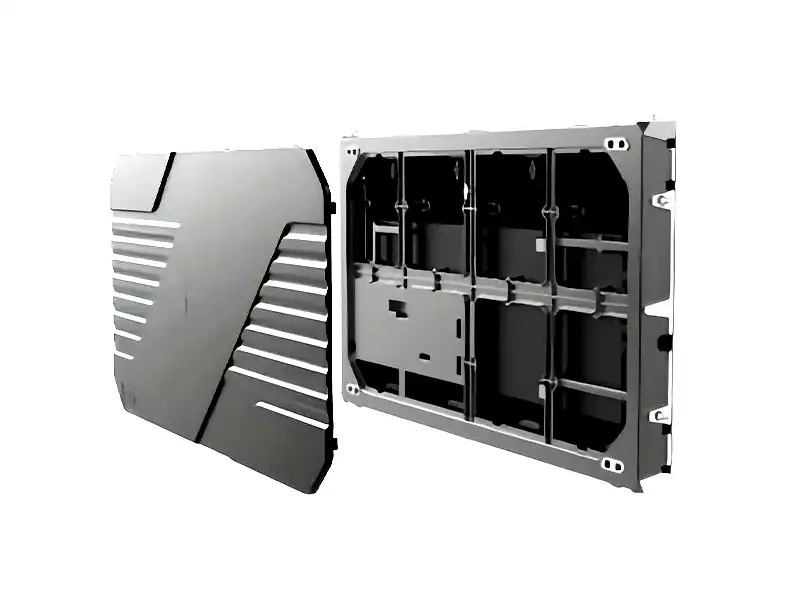

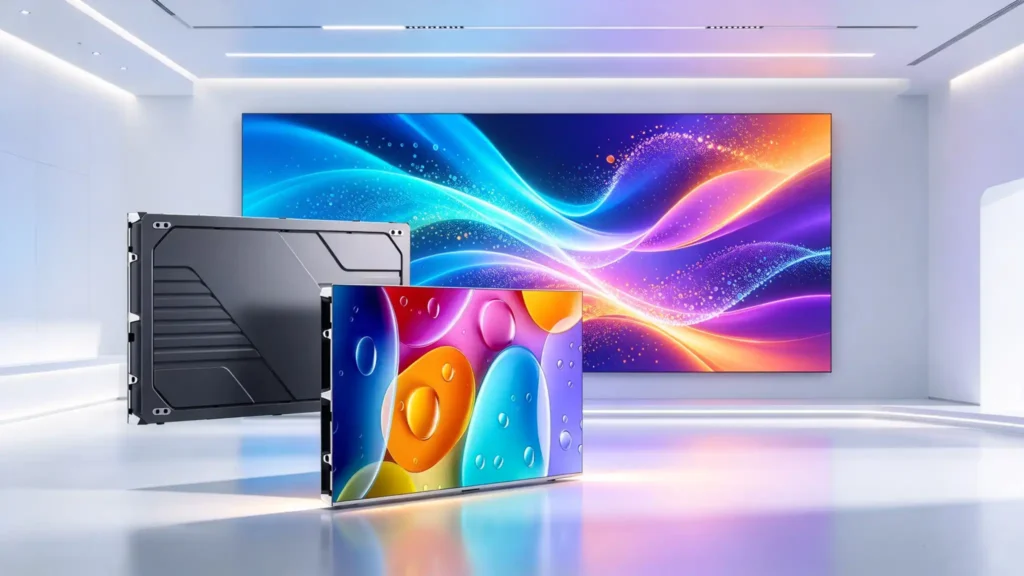

Precision Die-Cast Aluminum 16:9 Cabinet

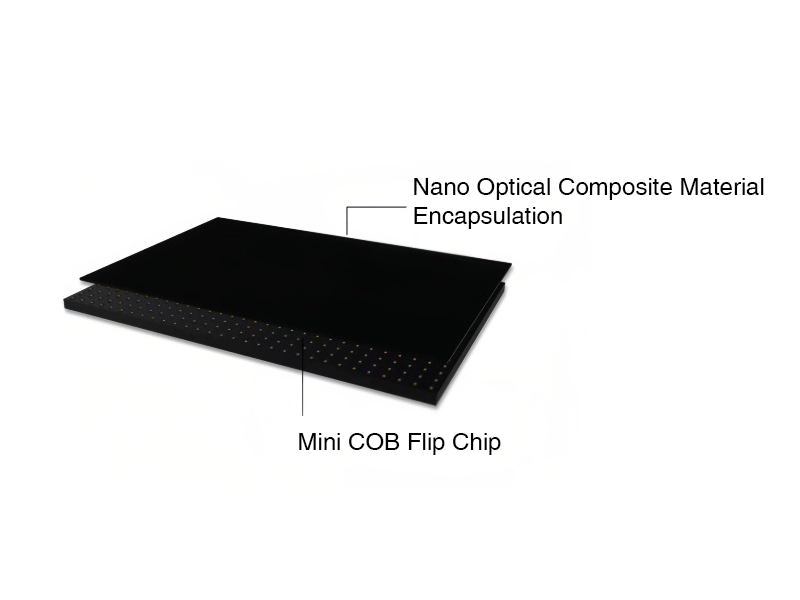

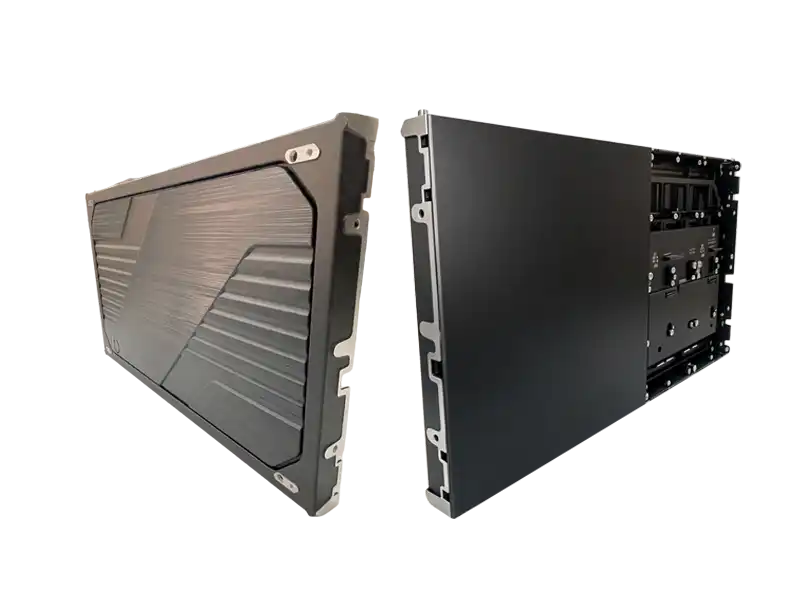

Flip-Chip COB Architecture
Micro-Pitch LED Native 2K/4K/8KCabinet Splicing

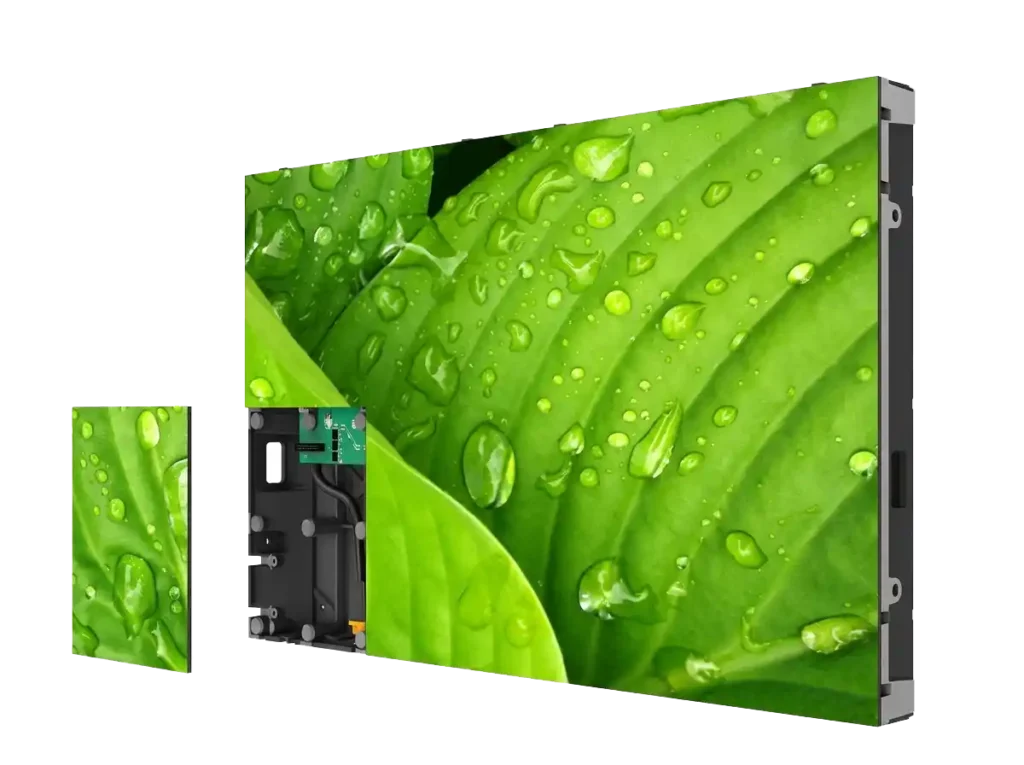

Full Front-Access Magnetic Module Design for Effortless Maintenance
Fine Pitch Indoor COB LED Video Wall for Conference Rooms, Control Centers, and Broadcast Studios
Adhaiwell Indoor COB LED Display is a fine-pitch Chip-on-Board LED video wall engineered for close-viewing indoor environments such as conference rooms, control centers, and broadcast studios. Available in P0.9, P1.2, P1.5, and P1.8 pixel pitches, it integrates flip-chip COB LED packaging with a 16:9 die-cast aluminum cabinet, a 3840Hz refresh rate, and front-access maintenance. The encapsulated COB surface protects the LED chips while delivering high contrast, deep blacks and uniform images at viewing distances of only a few meters.
This fine pitch COB LED display is specified for corporate boardrooms, command and control centers, broadcast studios, premium retail, museums, churches, education and hospitality video wall projects. Adhaiwell, a China LED display manufacturer based in Shenzhen, exports indoor COB LED video walls to system integrators and project contractors across Europe, the Middle East, North America, and Southeast Asia (Japan, etc.). Each 4K or 8K canvas configuration is engineered around the project’s viewing distance, screen dimensions, and content requirements rather than pixel pitch alone.
Built in Adhaiwell’s Shenzhen factory: Built in Adhaiwell’s Shenzhen factory with Tier-1 LED chips, Novastar receiving cards and industrial-grade power supplies, every COB LED module passes electrical testing, 72-hour aging and pixel-level brightness and chromaticity calibration (DeMura) before shipment. OEM/ODM customization covers pixel pitch, cabinet size, screen dimensions, control system, brightness and front-maintenance architecture, with CE and RoHS certification and factory-direct pricing for global B2B projects.
Fine Pitch COB LED Display for Close Viewing — P0.9 / P1.2 / P1.5 / P1.8
| Pixel Pitch | Pixel Density | Typical Application |
|---|---|---|
| P0.9 | Ultra-high | Control rooms, premium boardrooms, broadcast, visualization |
| P1.2 | High | Corporate meeting rooms, command centers, premium retail |
| P1.5 | High | Conference rooms, education, showroom and commercial video walls |
| P1.8 | Fine pitch | Large meeting spaces, retail, hospitality and general premium indoor applications |
P0.9 is suitable when maximum image detail and close viewing are priorities. P1.2 provides a strong balance between image resolution, viewing distance and project investment. P1.5 is suitable for many corporate, commercial and professional indoor environments. P1.8 provides a cost-effective fine-pitch solution when the average viewing distance is greater. The final pixel pitch should be selected according to actual screen dimensions, viewing distance and content requirements.
COB vs SMD LED Display — Which Technology Fits Your Project?
| Feature | COB LED Display | Traditional SMD LED Display |
|---|---|---|
| LED Architecture | LED chips directly integrated on PCB | Packaged LED lamps mounted on PCB |
| Fine Pixel Pitch | Excellent | Excellent, depending on package |
| Surface Protection | Integrated encapsulated surface | Individual LED packages |
| Close Viewing | Excellent | Very good |
| Impact Resistance | High | Depends on LED package and protection |
| Contrast Performance | Typically very high | Depends on LED package and surface |
| Front Maintenance | Available | Available |
| Pixel-Level Repair | More specialized | Generally easier |
| Initial Cost | Generally higher | Wider cost range |
| Best Use | Premium fine-pitch indoor applications | Broad indoor LED applications |
Choose COB when your project prioritizes fine pixel pitch, close viewing, protected surface, premium visual performance and long-term professional operation. Choose SMD Fine Pitch Indoor LED Display when your project prioritizes broad pixel-pitch selection, a mature supply chain, easier component-level repair and project cost flexibility. Adhaiwell can help integrators select the appropriate technology based on the actual project.
COB LED Display Applications

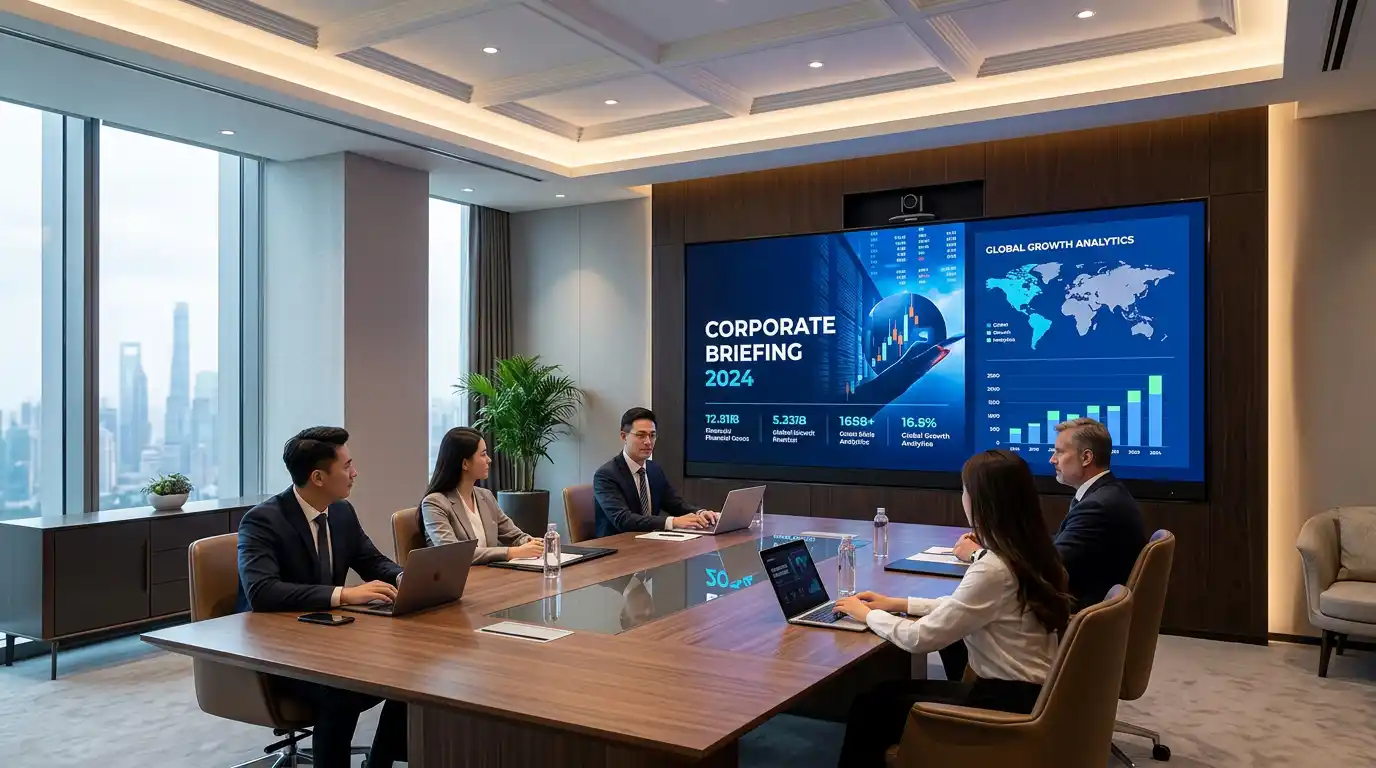

Corporate Boardrooms & Meeting Rooms
Fine-pitch COB LED walls give executives a presentation canvas that stays detailed at viewing distances of two to four meters, from P1.2 boardroom walls to P0.9 executive briefing rooms. Adhaiwell engineers each corporate video wall around 16:9 content, video conferencing cameras and front-maintenance requirements for architectural walls.

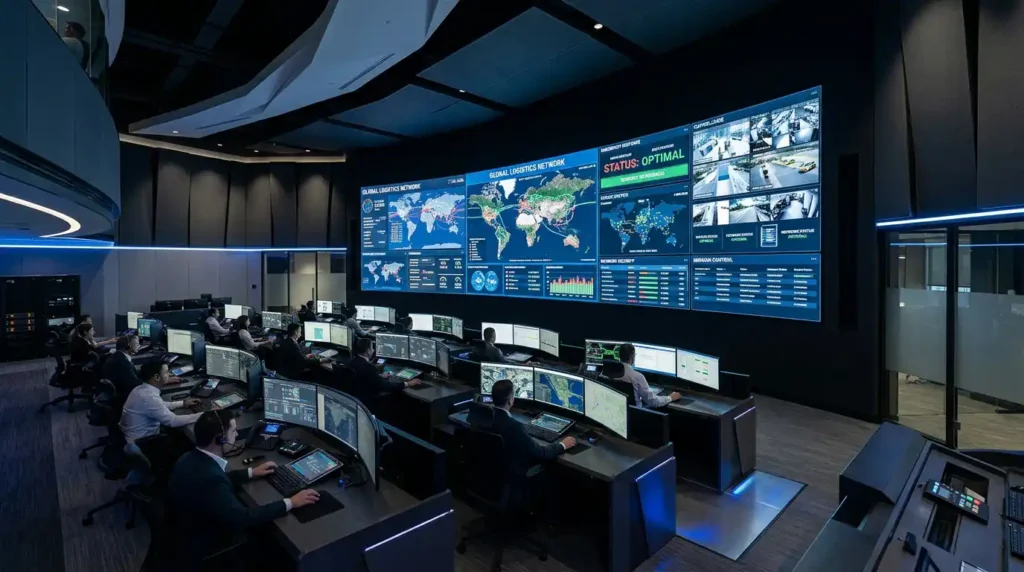

Command & Control Centers

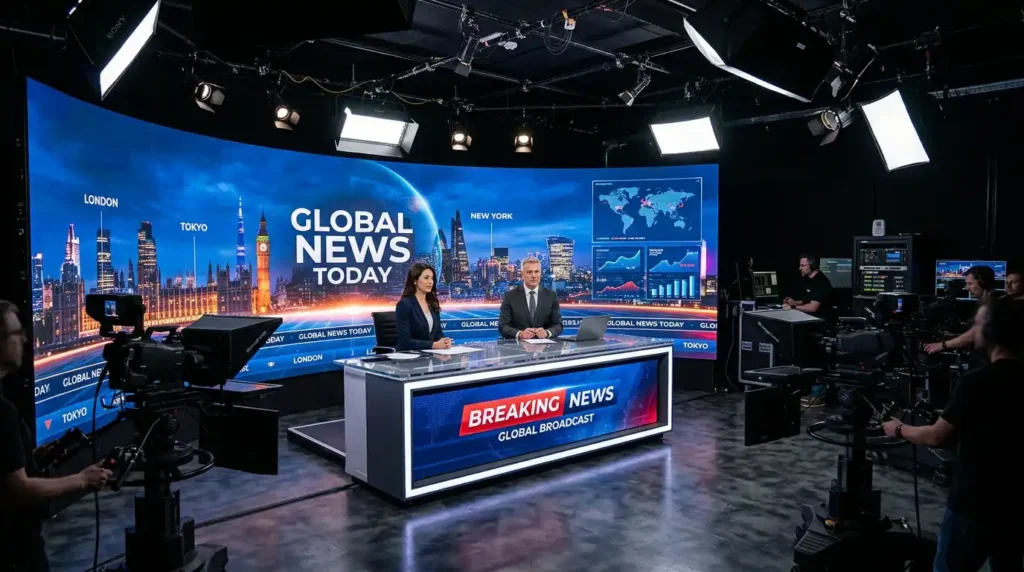

Broadcast Studios
High refresh rates, fine pixel pitch and DeMura calibration make COB LED walls suitable for studio backgrounds, virtual production and on-camera broadcast work. Adhaiwell specifies refresh rate, shutter compatibility and receiving-card configuration together with the studio’s camera plan.

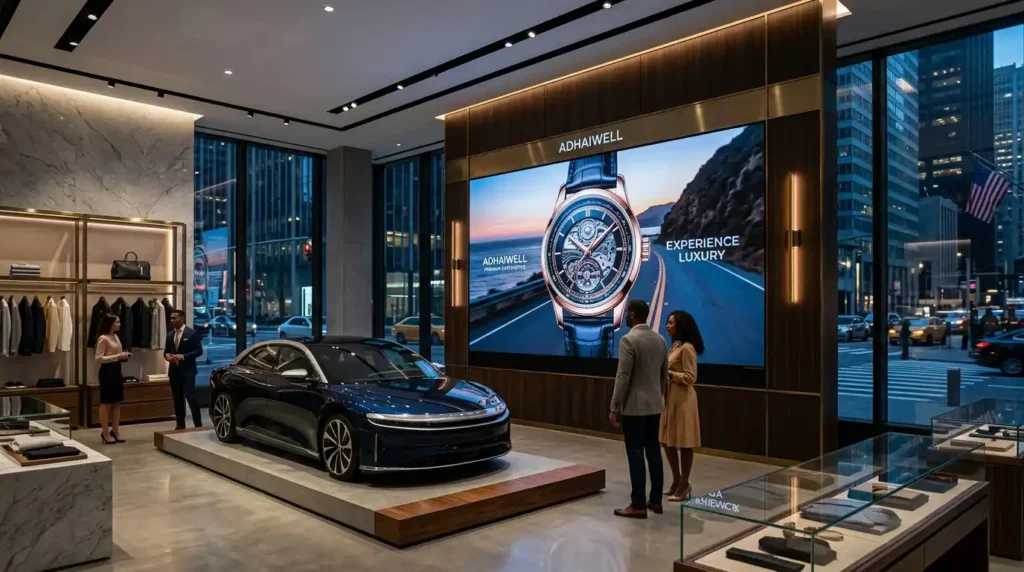

Premium Retail & Showrooms
COB LED video walls serve as high-end digital architecture in luxury retail, jewelry, automotive showrooms and brand experience centers. Adhaiwell provides custom screen sizes, cabinet options and OEM branding for retail fit-out contractors and integrators.

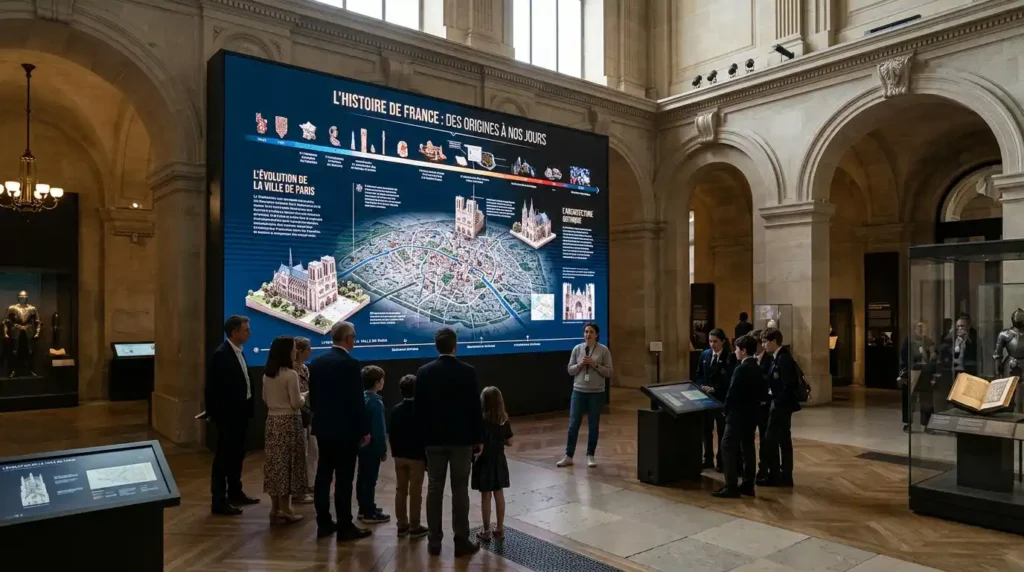

Museums, Education & Training
High pixel density supports detailed storytelling, interactive content and immersive exhibition environments in museums, universities and corporate academies. Adhaiwell engineers curved, corner and irregular COB canvas configurations for exhibition and architectural projects.

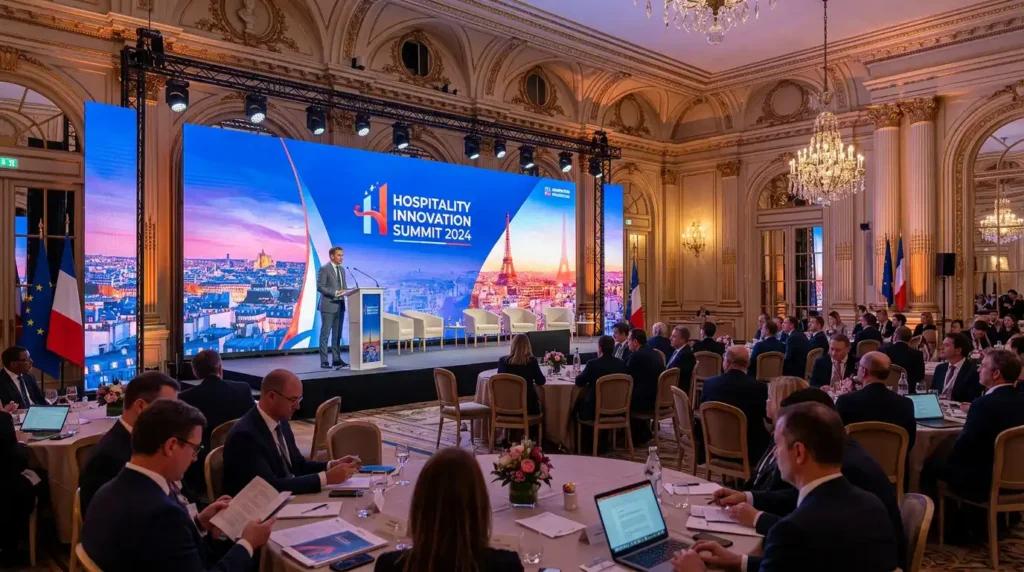

Hospitality & Conference Centers
Hotels, ballrooms, conference centers and VIP lounges use fine-pitch COB LED walls as large-format presentation and event backdrops. Adhaiwell supports free-standing, hanging and recessed installation structures engineered for each venue.

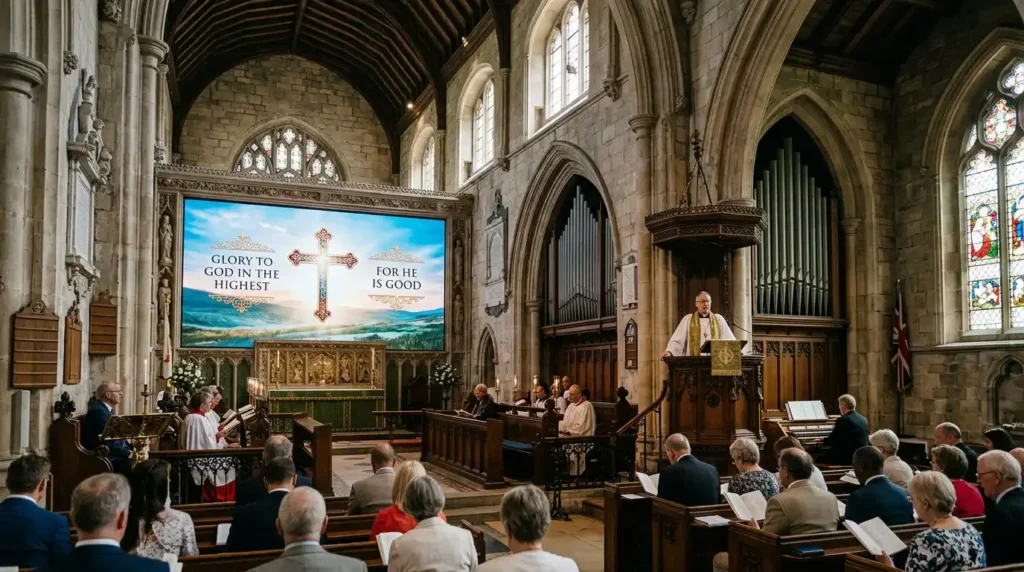

Churches & Places of Worship
Fine-pitch COB LED walls deliver crisp lyric projection, scripture display, and immersive visual backdrops that remain clearly visible from the front rows to the back of large sanctuaries, from P1.5 main stage backdrops to P1.2 sanctuary displays. Adhaiwell engineers each worship video wall around sanctuary acoustics, live-streaming camera compatibility, and architectural integration for modern and traditional houses of worship.
COB LED Display Technical Specifications
| Parameter | P0.9 | P1.2 | P1.5 | P1.8 |
|---|---|---|---|---|
| Pixel Pitch | 0.9 mm | 1.2 mm | 1.5 mm | 1.8 mm |
| LED Technology | COB / Flip-Chip COB | COB / Flip-Chip COB | COB / Flip-Chip COB | COB / Flip-Chip COB |
| Application | Indoor | Indoor | Indoor | Indoor |
| Cabinet Format | 16:9 | 16:9 | 16:9 | 16:9 |
| Cabinet Size | 600 × 337.5 mm | 600 × 337.5 mm | 600 × 337.5 mm | 600 × 337.5 mm |
| Refresh Rate | 3840 Hz ~ 7680Hz | 3840 Hz ~ 7680Hz | 3840 Hz ~ 7680Hz | 3840 Hz ~ 7680Hz |
| Viewing Angle | Up to 160°–170° | Up to 160°–170° | Up to 160°–170° | Up to 160°–170° |
| Front Maintenance | Yes | Yes | Yes | Yes |
| Brightness | 600nit ~800nit | 600nit ~800nit | 600nit ~800nit | 600nit ~800nit |
| Grayscale | 14/16 bit configuration | 14/16 bit configuration* | 14/16 bit configuration | 14/16 bit configuration |
| Calibration | Brightness & Chromaticity | Brightness & Chromaticity | Brightness & Chromaticity | Brightness & Chromaticity |
| Operating Environment | Indoor | Indoor | Indoor | Indoor |
*Final specifications depend on the selected LED chip, driver IC, cabinet architecture and control system. Contact Adhaiwell for the project-specific datasheet.
Frequently Asked Questions
What is a COB LED display?
COB LED display stands for Chip-on-Board LED display. Instead of using conventional packaged LED lamps, COB technology mounts LED chips directly onto the PCB substrate and encapsulates the chips as an integrated display surface. This architecture enables fine pixel pitches, high pixel density and enhanced surface protection, making COB particularly suitable for premium indoor LED video walls.
Is COB better than SMD?
COB and SMD serve different project requirements. COB is suitable for premium indoor applications requiring fine pixel pitch, close viewing, protected surfaces and high visual consistency. SMD offers a mature ecosystem, broad product selection and generally easier component-level repair. The right choice depends on the project rather than the technology name alone.
Is a COB LED display suitable for a control room?
Yes. P0.9 and P1.2 fine-pitch COB configurations support detailed data visualization, maps, dashboards and surveillance feeds. For mission-critical control rooms, redundant power, signal backup and monitoring architecture should be specified according to uptime requirements.

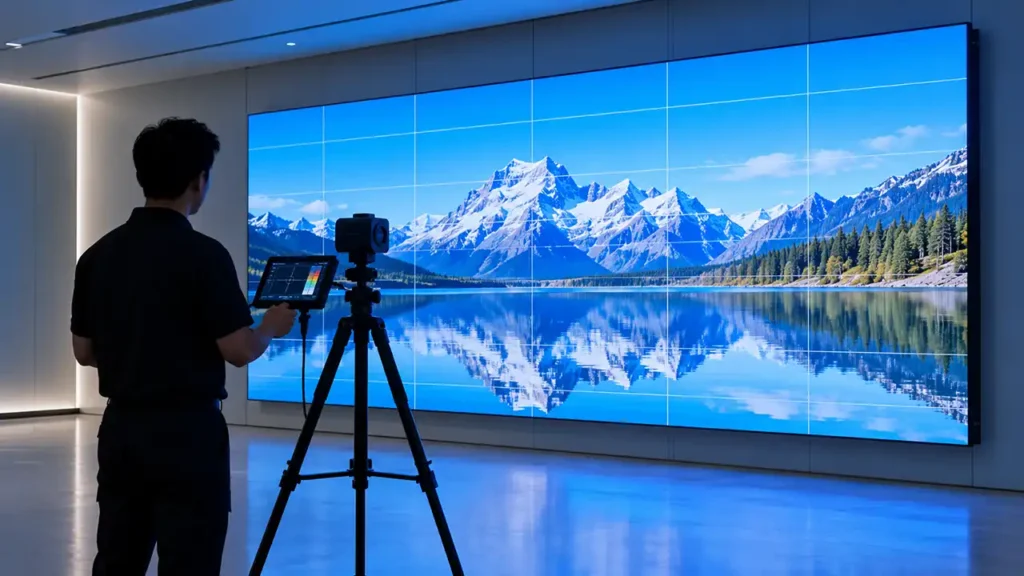

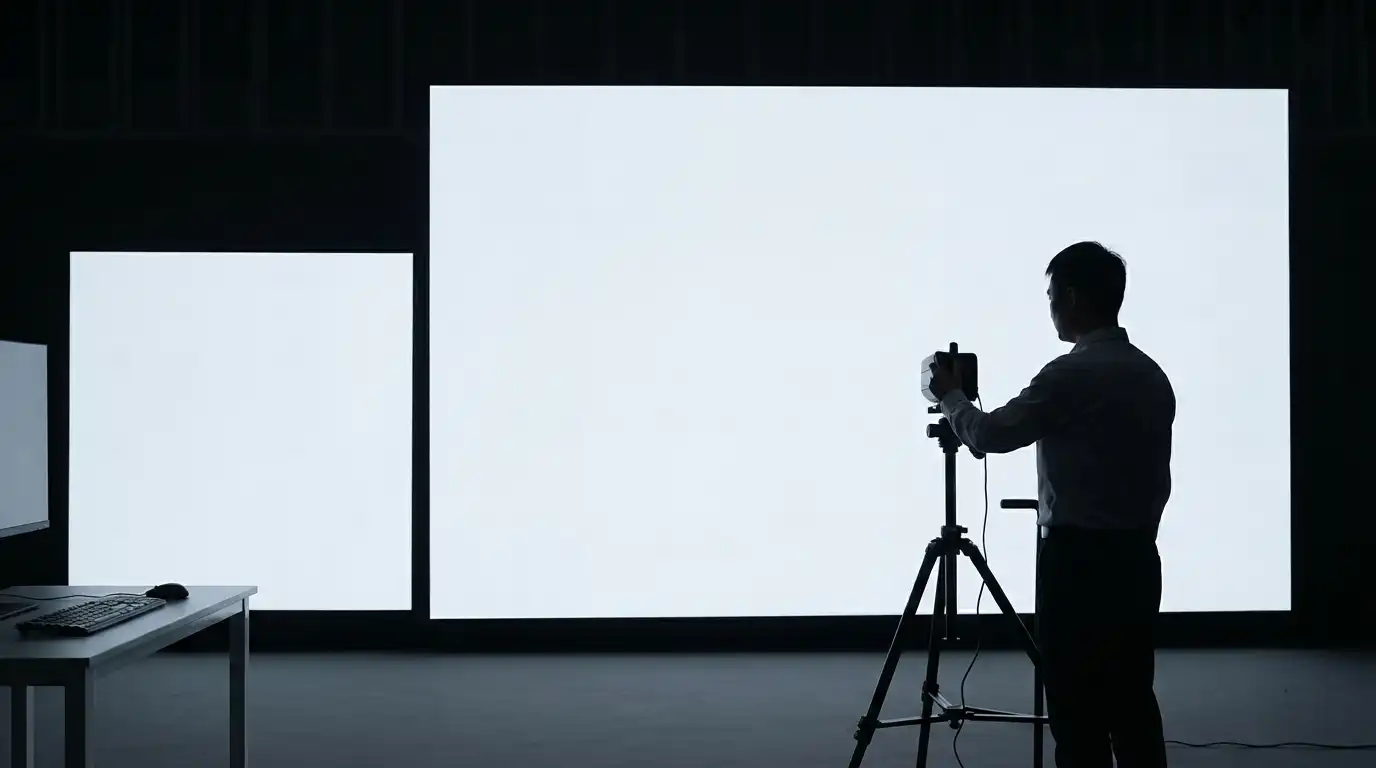

Does a COB LED display require calibration?
Yes. Professional fine-pitch LED walls should be calibrated for brightness and color consistency. Pixel-level brightness and chromaticity correction (DeMura) maintains uniformity between modules and across the complete display surface.
Can COB LED displays be used for 4K and 8K?
Yes. A COB LED wall can be engineered to achieve 4K-class or 8K-class resolution depending on the selected pixel pitch and total screen dimensions. Pixel pitch, screen size, processing capability and signal bandwidth should be designed as one complete system.
How long does an indoor COB LED display last?
Lifetime depends on LED chip quality, driving conditions, brightness, thermal management and environment. Many professional COB LED platforms are designed around long-life LED components, commonly specified around 100,000 hours under defined operating conditions.
Get a COB LED Display Designed for Your Project
Tell Us Your Screen Size, Viewing Distance and Application.
Adhaiwell engineers can recommend the appropriate Pixel Pitch → Cabinet Size → Resolution → Brightness → Refresh Rate → Control System → Installation Structure → Maintenance Method for your project.
Whether you are building a 4K corporate video wall, P0.9 control room display, conference room LED wall, broadcast studio, premium retail screen or large-format 8K visualization system, we can provide a project-specific COB LED display configuration.
Send us: Screen Width × Height ｜ Viewing Distance ｜ Indoor Environment ｜ Preferred Pixel Pitch ｜ Target Resolution ｜ Installation Method ｜ Required Quantity ｜ Destination Country
Adhaiwell will provide a project-specific configuration and quotation.
