From Blueprint to Brilliance: The Complete Turnkey Journey of an Outdoor LED Billboard Project

For overseas buyers, engineering firms, and advertising operators, building an outdoor LED billboard is never just about buying screens. What looks like a simple advertising structure involves complex engineering disciplines—structural design, environmental adaptability, international logistics coordination, and local installation compliance. The gap between “we need a billboard” and “the billboard is live and generating revenue” can be daunting without a structured approach.

This is where a turnkey solution provider transforms complexity into clarity. From the very first steel structure drawing to the final moment when content appears on screen, Adhaiwell delivers a fully integrated, one-stop outdoor LED display solution that covers every critical phase.

Key Takeaways

• One supplier, end-to-end responsibility – Eliminates fragmented vendor management and hidden project risks
• Steel structure engineering – Professionally designed load-bearing frameworks ensure wind resistance and long-term safety
• Three core cabinet technologies – Each engineered for specific outdoor environments and budget requirements
• International logistics expertise – Proper packaging, customs clearance, and sea freight coordination reduce delays
• On-site technical support – From commissioning to staff training, ensuring immediate operational readiness

Phase 1: From Concept to Steel – Precision Structural Engineering

Every outdoor LED billboard begins with a fundamental question: Where will it stand, and what will hold it up?

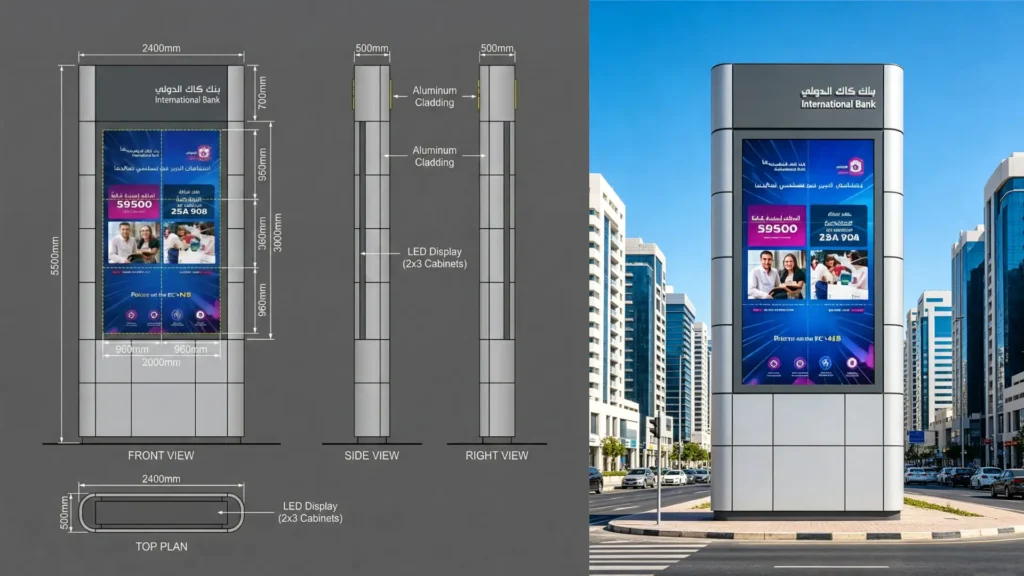

A 2m × 3m dual-sided LED sign—like the project illustrated in Adhaiwell’s engineering documentation—requires a meticulously calculated steel structure capable of withstanding wind loads, seismic activity, and long-term environmental exposure at the installation site.

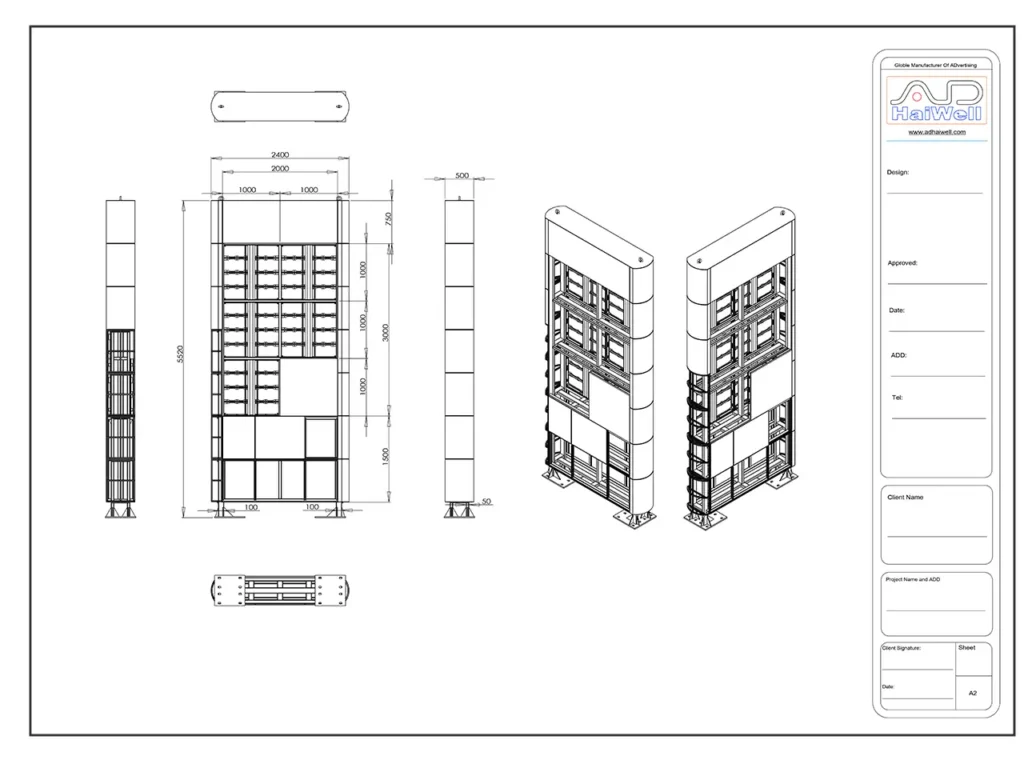

Adhaiwell’s engineering team begins by analyzing the site conditions, local wind speed data, ground composition, and mounting requirements. Using CAD and SolidWorks, detailed structural drawings are produced that specify:

• Column dimensions and foundation depth
• Steel grade and anti-corrosion treatment specifications
• Weld joint engineering and bolt connection nodes
• Access platforms and maintenance pathways

For a 2m × 3m installation, the structure might be a single-pole design for roadside placement or a wall-mounted frame for building facades. Every drawing is customized to the project’s unique dimensions and environmental demands

Why Steel Structure Design Matters for ROI

A properly engineered steel framework does more than hold the display in place. It extends the billboard’s operational lifespan, minimizes deformation risk over years of use, and ensures safety compliance with local building codes. For advertising operators, this translates directly to lower maintenance costs and uninterrupted revenue generation.

“A well-designed support structure can withstand extreme factors. Adhaiwell is your best lead digital billboard structure manufacturer also can supply free design for your own creative and customization.” — Adhaiwell Engineering Team

Phase 2: Cabinet Selection – Matching Technology to Environment

Once the steel framework is engineered, the next decision shapes everything from visibility to energy costs: Which outdoor LED cabinet technology fits the project?

Adhaiwell offers three distinct outdoor LED display cabinet series, each optimized for specific applications and operating conditions. The choice depends on installation location, budget parameters, and performance requirements.

Outdoor Fixed Steel Cabinet LED Displays – The Rugged Workhorse

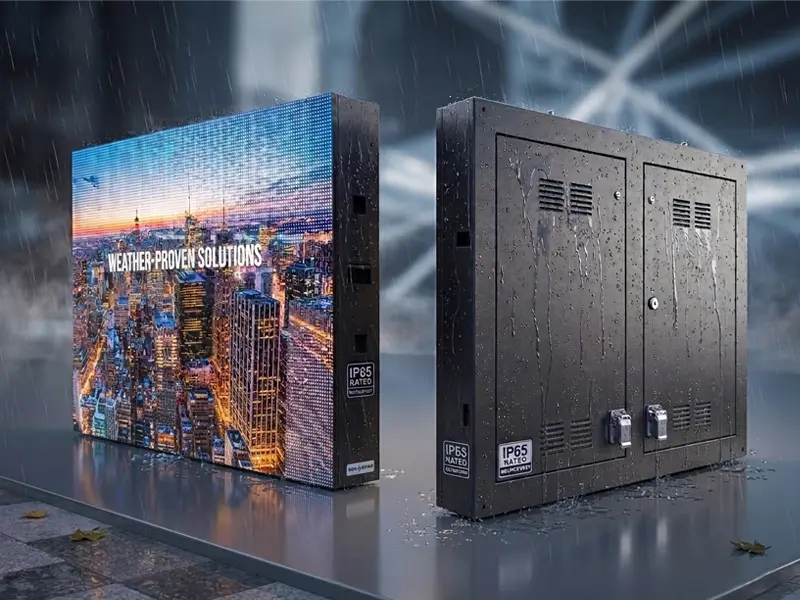

Engineered for permanent outdoor fixed installation, Steel cabinet LED displays are the backbone of global DOOH (Digital-Out-Of-Home) networks. With IP65 weatherproof rating and 6000–8000 nits brightness, these screens deliver crystal-clear visibility even under direct midday sunlight. The heavy-duty steel frame prevents screen deformation over years of operation, making it the most cost-effective solution for large-scale highway billboards, urban commercial hubs, and stadium perimeter advertising.

Best suited for:

• Highway and roadside billboards exposed to wind and vibration
• Budget-conscious large-scale projects requiring maximum durability
• Harsh environments with extreme temperature swings (+60°C to freezing)

Price range: $450\text{–}$450–1,000 per square meter

Aluminum Profile Alloy Outdoor LED Displays – The Energy-Saving Performer

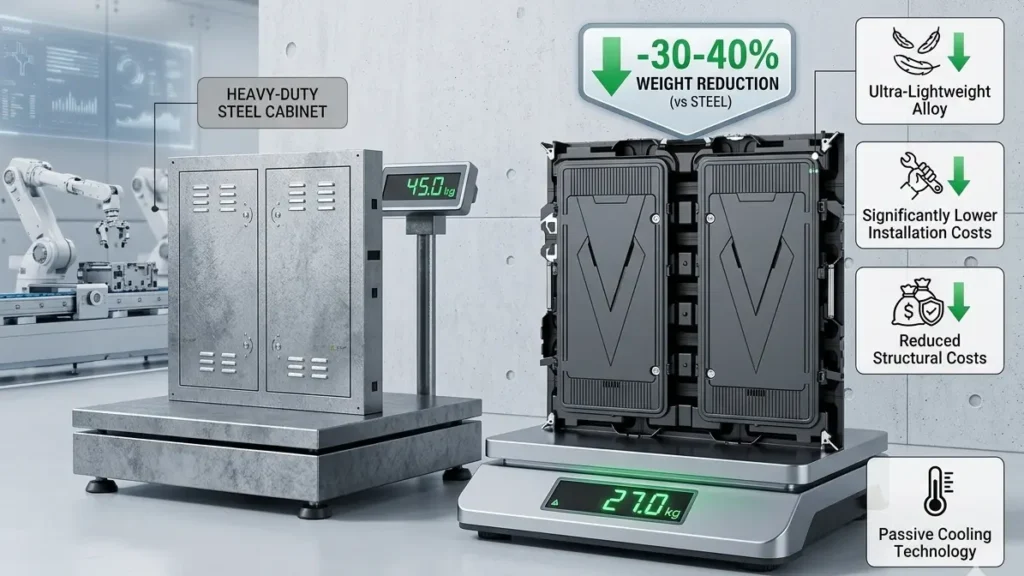

For projects where weight reduction and energy efficiency are top priorities, Aluminum profile LED cabinets deliver exceptional value. At 22 kg per cabinet—35% lighter than steel alternatives—these displays significantly reduce shipping costs, crane expenses, and structural load requirements. The Ti-Energy Saving Technology cuts power consumption by 30% , averaging just 100–200W/m², while maintaining 6000 nits brightness and 3840Hz refresh rate for broadcast-grade visuals.

The 6063-T5 industrial-grade aluminum alloy provides 20-year structural integrity, and the passive aluminum heatsink cooling system keeps LEDs running 15°C cooler than steel options—extending component lifespan and eliminating noisy cooling fans.

Best suited for:

• High-rise building façades and coastal landmarks (salt-fog resistance)
• Long-term advertising networks where electricity costs matter
• Projects where lightweight design reduces installation complexity

Price range: $550\text{–}$550–1,500 per square meter

Die-Cast Aluminum Outdoor LED Displays – Precision for Premium Applications

When visual perfection and seamless display surfaces are non-negotiable, die-cast aluminum LED cabinets offer the highest engineering precision. CNC-machined frames maintain tolerance of ±0.1mm, creating perfectly flat, gap-free display surfaces ideal for luxury retail environments and high-end DOOH projects. Die-cast aluminum dissipates heat three times faster than steel, while the ultra-lightweight design reduces installation costs by 30–40% compared to traditional cabinets.

The rapid lock system connects cabinets in as little as 10 seconds, and dual front/rear maintenance access ensures minimal downtime. Genuine Meanwell power supplies and aviation-grade sealed connectors guarantee 24/7 operational reliability.

Best suited for:

• Luxury retail façades and premium urban street furniture
• Architecturally sensitive projects requiring seamless visual surfaces
• Tropical and coastal environments with high humidity and salt exposure

Price range: $530\text{–}$530–1,100 per square meter

Phase 3: Manufacturing Quality Assurance – Built to Last

Regardless of cabinet type, every Adhaiwell LED display undergoes rigorous quality control protocols before leaving the factory. The manufacturing process integrates anti-corrosion coating applications, weather-sealed connections to prevent moisture damage, and built-in ventilation systems that optimize cooling and extend component lifespan.

Each batch undergoes systematic testing, including:

• 72-hour continuous water-spray testing to validate IP65 weatherproof ratings
• Aging cycle tests under simulated extreme temperature conditions
• Brightness calibration ensures a consistent 6000+ nits output across all modules
• Signal integrity verification at 3840Hz refresh rates

For international buyers, the most important quality metric is consistency. A billboard that performs flawlessly during factory testing but fails after six months in the field is a business liability. Adhaiwell’s ISO-compliant manufacturing processes ensure every cabinet leaving the Shenzhen and Zhaoqing facilities meets the same exacting standards

Phase 4: International Logistics – Moving Billboards Across Oceans

A professional LED billboard project doesn’t end at the factory gate. For overseas buyers, getting the product from China to the installation site is often the most stressful phase of the entire process.

Adhaiwell’s turnkey solution includes complete international logistics management, which covers:

• Customs clearance documentation (HS Code 8531200000 for LED displays)
• Sea freight coordination from Guangzhou or Shenzhen ports to destination countries
• Professional crating and packaging – displays are packed in reinforced wooden crates with shock-absorbing materials to prevent transit damage
• Insurance coverage for high-value cargo
• Last-mile delivery coordination to the job site

Sea freight remains the most economical option for large LED billboard shipments, with typical transit times of 15–45 days depending on destination. For urgent projects, air freight is available with 7–14 day delivery.

The key to successful international logistics is experience—understanding port regulations in different countries, anticipating customs inspection requirements, and planning for seasonal shipping delays. Adhaiwell has delivered outdoor LED displays to clients across Africa, South America, the Middle East, and Southeast Asia, developing logistics playbooks for each region

Phase 5: On-Site Installation & Commissioning – The Final Mile

When the containers arrive at the job site, the project enters its most visible phase: assembly and activation.

A typical outdoor LED billboard installation follows a structured timeline:

1. Foundation preparation – Local contractors pour concrete bases based on Adhaiwell’s engineering drawings
2. Steel structure erection – Columns and support frames are assembled and anchored
3. Cabinet mounting – LED cabinets are locked into position on the steel framework
4. Power and signal wiring – Weather-sealed connections are tested point by point
5. System commissioning – The full display is powered on, calibrated, and tested
6. CMS training – Local operators learn to manage content remotely

For buyers who do not have local installation teams, Adhaiwell offers on-site technical guidance—sending experienced engineers to oversee critical phases and ensure everything is built to specification.

The final step is content management system (CMS) training. Modern outdoor LED billboards are not static signs; they are programmatic advertising platforms capable of updating content remotely, scheduling campaigns across time zones, and optimizing display output based on ambient light conditions.

Why a Single Supplier Approach Wins

Fragmented procurement—buying steel structures from one company, LED cabinets from another, and hiring separate logistics and installation teams—creates real project risks:

• Compatibility issues when components from different manufacturers don’t fit precisely
• Warranty responsibility gaps when problems arise and no single party takes ownership
• Communication breakdowns between engineering, manufacturing, and installation phases
• Delayed timelines caused by coordinating multiple independent suppliers

Adhaiwell’s one-stop turnkey solution eliminates these risks entirely. From the initial site survey and structural engineering to manufacturing, quality testing, international shipping, and on-site commissioning, one supplier manages everything. This is the difference between a project that drags across months with constant firefighting and a project that moves smoothly from blueprint to brilliance

Real-World Impact: Beyond the Spec Sheet

For overseas LED display buyers, the ultimate measure of success is revenue generation per day of operation. Every day a billboard is delayed in production, stuck in customs, or offline due to technical issues is advertising revenue lost.

By streamlining the entire project lifecycle—design, engineering, manufacturing, logistics, and installation—Adhaiwell helps clients reach revenue-generating status faster while reducing total project costs through integrated coordination.

This is the essence of a true turnkey solution: one invoice, one point of contact, one warranty, one accountable partner from start to finish.

Ready to bring your outdoor LED billboard project from concept to reality? Adhaiwell provides complete turnkey solutions—from structural engineering and cabinet selection to international shipping and on-site installation. Contact our team for a customized project quote.
